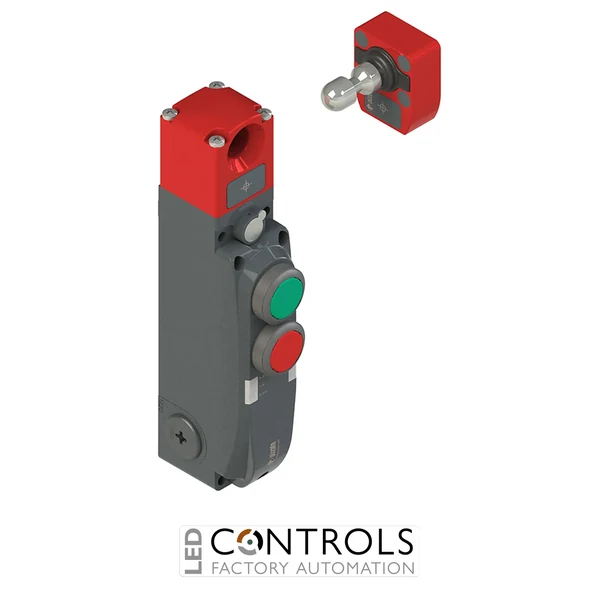

Why Choose the Pizzato NG 2D1E311F-F31 Safety Switch?
The Pizzato NG 2D1E311F-F31 is an advanced NG series safety switch with guard locking and integrated control devices, designed for monitoring movable guards and controlling access to hazardous areas of industrial machinery. By combining electronic guard detection, a locking function and local operator controls within one assembly, it provides a compact solution for modern machine safety and automation installations.
As part of the Pizzato NG series, the NG 2D1E311F-F31 uses electronic safety technology to monitor the associated actuator and guard-lock condition. Safety-related outputs can be connected to a suitable safety controller or safety circuit, enabling the machine control system to verify the required guard condition before hazardous operation is permitted.
The NG 2D1E311F-F31 is supplied with the VN NG-F31 high-level coded actuator. The F31 actuator provides individual coded identification for enhanced protection against actuator substitution, while the integrated control-device arrangement enables useful operator functions to be positioned directly alongside the guarded machine access point.
Key Advantages
- Combines guard monitoring, guard locking and integrated operator controls in one device.
- Electronic safety technology supports reliable integration into machine safety systems.
- High-level coded F31 actuator provides enhanced protection against actuator substitution.
- Guard-lock monitoring enables the safety system to determine the condition of the protected access point.
- Integrated control devices help simplify operator-control arrangements around machine guards.
- Suitable for machinery where access must remain controlled while hazardous conditions are present.
- Designed for demanding industrial automation and OEM machinery applications.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- Electronic coded-actuator detection.
- Integrated guard-locking function.
- Electronic safety outputs for safety-related control systems.
- Monitoring of actuator and locking conditions.
- VN NG-F31 high-level coded actuator.
- Integrated operator-control functionality.
- Designed for movable guards and protected machine access points.
- Suitable for automated machinery with controlled-access requirements.
- Industrial design for machine-building and factory automation systems.
Reliable Guard Locking and Control for Industrial Machinery
Guard-locking safety switches are used where detecting whether a movable protective guard is open or closed is not sufficient by itself. On machinery where hazardous movement, stored energy or industrial processes can continue after a stop request, the locking function can retain the guard until the safety system determines that access can be permitted.
The Pizzato NG series combines this locking capability with electronic actuator detection and safety-related monitoring. The integrated control-device configuration additionally allows operator functions to be located at the protected access point, providing a coordinated approach to machine guarding, access control and local machine operation.
Typical Applications
- Machine guard doors and movable protective guards.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated production and assembly equipment.
- Conveyor and material handling systems.
- Machine tools and guarded manufacturing equipment.
- OEM machinery and factory automation installations.
