Why Choose the Pizzato NG 2D1E312K-F30 Safety Switch?

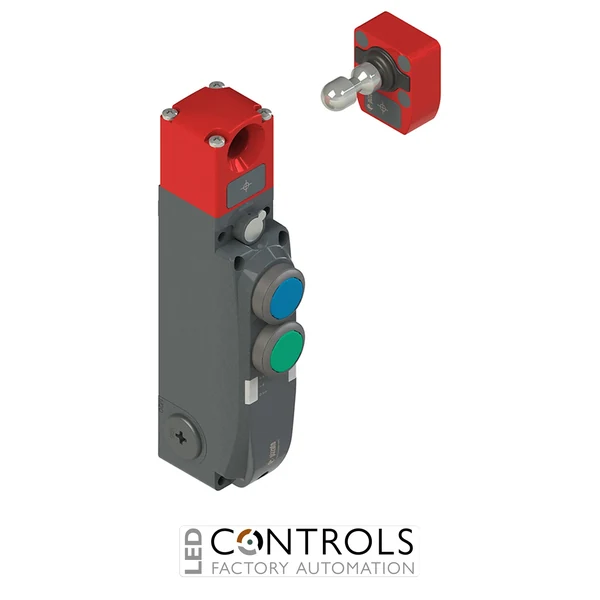

The Pizzato NG 2D1E312K-F30 is an NG series safety switch with guard locking and integrated control devices, designed for monitoring movable machine guards while providing convenient local operator controls. Supplied complete with its actuator, this configuration combines electronic safety monitoring, guard locking and two integrated pushbuttons within a robust metal housing.
This model uses the E operating principle, with the actuator locked when the electromagnet is energised. It provides two IS1–IS2 safety inputs and two OS1–OS2 safety outputs, together with O3 and O4 signalling outputs for actuator-inserted and actuator-locked status. Mode 1 operation means the safety outputs are active when the actuator is inserted and locked.
The NG 2D1E312K-F30 features a blue pushbutton with 1NO + 1NC contacts in position 1 and a green pushbutton with 1NO + 1NC contacts in position 2. It is supplied with the VN NG-F30 low-level coded actuator and features a metal housing, orientable head, three threaded M20 × 1.5 cable entries and a locking force of 9750 N.
Key Advantages
- Combines guard monitoring, guard locking and two operator pushbuttons in one device.
- E operating principle locks the actuator when the electromagnet is energised.
- Two electronic safety inputs and two safety outputs support modern safety-control architectures.
- Separate O3 and O4 outputs provide actuator-inserted and actuator-locked status information.
- Integrated blue and green pushbuttons each provide 1NO + 1NC contacts.
- Supplied with a VN NG-F30 low-level coded actuator.
- High 9750 N locking force supports demanding guard-locking applications.
- Robust metal housing and orientable head provide flexibility for industrial installations.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- Position 1: blue pushbutton, 1NO + 1NC.
- Position 2: green pushbutton, 1NO + 1NC.
- Cover configuration: 2 integrated control devices.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- I4 or IE1–IE2 inputs for electromagnet activation.
- I3 reset input.
- Mode 1 safety outputs active with the actuator inserted and locked.
- VN NG-F30 low-level coded actuator.
- Metal housing with three threaded M20 × 1.5 cable entries.
- Orientable head for flexible installation.
Reliable Guard Locking with Integrated Operator Controls
The Pizzato NG 2D1E312K-F30 provides guard-position and lock monitoring for machinery where controlled access to hazardous areas is required. Its energised-solenoid locking principle enables the machine safety system to command the locking function, while separate electronic status outputs allow actuator insertion and locking condition to be monitored.
Integrating blue and green 1NO + 1NC pushbuttons into the switch assembly places useful operator-control functions directly at the guarded access point. Together with its electronic safety architecture, 9750 N locking force and robust metal construction, this makes the NG 2D1E312K-F30 suitable for sophisticated automated machinery and industrial guarding systems.
Typical Applications
- Machine guard doors and movable protective guards.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production equipment.
- Conveyor and material handling systems.
- Machine access points requiring local pushbutton controls.
- OEM machinery and factory automation installations.
