Why Choose the Pizzato NG 2D1E322P-F30 Safety Switch?

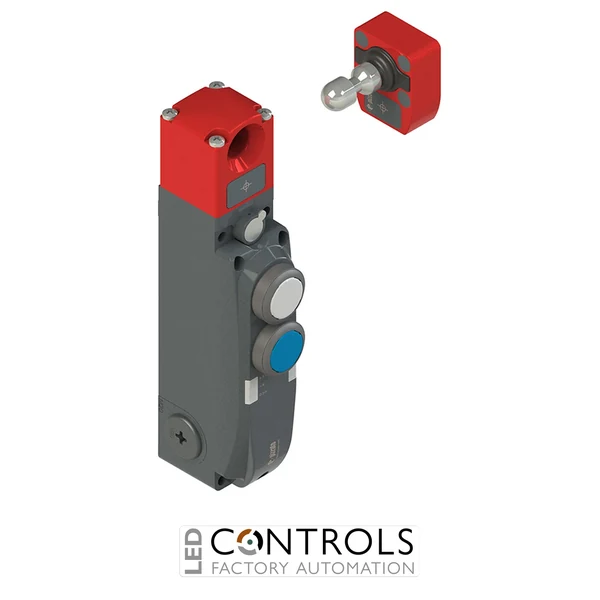

The Pizzato NG 2D1E322P-F30 is an advanced safety locking switch with RFID technology, integrated control devices and actuator, designed for monitoring and locking movable guards on industrial machinery. As part of the Pizzato NG series, it combines coded non-contact actuator detection, guard locking and machine-control functions within a robust industrial housing.
The NG series is designed for high-performance machine safety applications where reliable guard monitoring, tamper resistance and straightforward diagnostics are required. Digitally coded RFID actuator technology helps prevent unauthorised or incorrect actuation, while integrated status LEDs provide clear information on power, input, output, actuator and locking conditions.
The NG 2D1E322P-F30 uses the NG series E working principle and is supplied in a configuration with an actuator and integrated control devices. Its metal construction, high actuator holding force and safety-rated electronic outputs make it suitable for demanding automated machinery, production lines and guarded manufacturing equipment.
Key Advantages
- Integrated RFID safety interlock and guard locking in one compact device.
- Digitally coded actuator provides enhanced anti-tampering protection.
- Integrated control devices reduce the need for separate operator-control enclosures.
- High actuator holding force for secure locking of machine guards.
- Clear LED indication simplifies diagnostics and machine maintenance.
- Designed for safety systems up to SIL 3 and PL e when correctly integrated.
Key Features
- Pizzato NG series safety locking switch.
- RFID coded actuator detection.
- Integrated guard locking function.
- Supplied configuration includes actuator.
- Integrated operator control devices within the raised switch cover.
- 9750 N actuator holding force.
- Two electronic safety outputs for integration with machine safety circuits.
- Dedicated signalling outputs for guard-closed and guard-locked status.
- Multi-LED diagnostic indication for rapid machine troubleshooting.
- Robust metal housing with three M20 × 1.5 conduit entries.
Reliable Guard Monitoring for Industrial Machinery
Safety locking switches such as the Pizzato NG series prevent access to hazardous machine areas until the control system determines that entry is safe. RFID actuator recognition provides coded, non-contact guard detection, while the mechanical locking system keeps the actuator securely retained when the protected machine condition requires the guard to remain closed.
The NG series combines guard monitoring, locking, safety outputs, signalling and local operator controls within one device. Its dedicated diagnostic LEDs indicate power, safety input, safety output, actuator and lock status, allowing engineers to identify interruption points in the safety chain quickly and minimise machine downtime.
Typical Applications
- Machine guarding and access-door interlocking.
- Automated manufacturing and assembly systems.
- Robotic cells and automated production equipment.
- Packaging, processing and material handling machinery.
- CNC and industrial machine-tool guarding.
- Production lines requiring locked access to hazardous areas.
