Why Choose the Pizzato NG 2D1E412A-F30 Safety Switch?

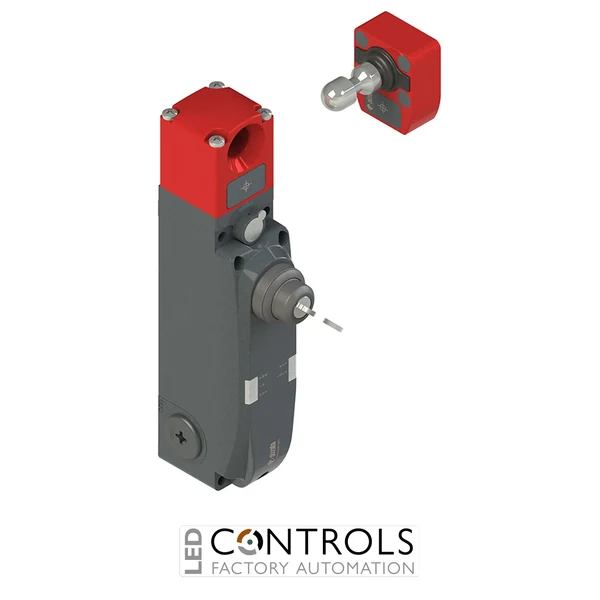

The Pizzato NG 2D1E412A-F30 is an NG series safety switch with guard locking and integrated control devices, designed for monitoring movable guards and controlling access to hazardous areas on industrial machinery. Supplied complete with its actuator, it combines electronic guard detection, guard locking and local operator-control functionality within one integrated machine-safety device.
The NG platform uses electronic safety technology to monitor the associated actuator and locking condition, providing safety-related outputs for integration with suitable machine safety controllers. This allows the machine safety system to supervise the condition of a protected guard while the locking function can be used to control access according to the requirements of the machine application.
The NG 2D1E412A-F30 is supplied with the VN NG-F30 low-level coded actuator. Its integrated control-device configuration allows useful operator functions to be located directly at the guarded access point, helping consolidate guard monitoring, locking and machine controls into a robust solution for industrial automation.
Key Advantages
- Combines guard monitoring, guard locking and integrated operator controls in one device.
- Electronic safety technology supports integration with modern machine safety systems.
- Coded actuator detection provides dependable monitoring of the associated movable guard.
- Guard-lock monitoring supports controlled access to hazardous machine areas.
- Integrated control devices can reduce the need for separate operator-control stations at the guard.
- Supplied complete with the specified VN NG-F30 actuator.
- NG-series construction is designed for demanding industrial machinery and automation applications.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- Electronic coded-actuator detection.
- Integrated guard-locking function.
- Electronic safety outputs for safety-related machine control.
- Monitoring of actuator position and guard-lock condition.
- VN NG-F30 low-level coded actuator.
- Integrated operator-control functionality.
- Designed for movable guards and protected machine access points.
- Suitable for machinery requiring controlled access during hazardous operating conditions.
- Industrial design for automated production and OEM machinery.
Reliable Guard Locking with Integrated Operator Controls
Guard-locking safety switches are used on machinery where monitoring whether a protective guard is open or closed may not be sufficient on its own. The locking function enables access through the associated guard to be controlled as part of the machine safety system, helping prevent access while hazardous machine conditions are present.
The Pizzato NG series combines guard locking with electronic coded-actuator detection and safety-related monitoring. Integrated control devices additionally provide local operator functionality at the protected access point, making the NG 2D1E412A-F30 suitable for automated machinery where guard supervision, controlled access and operator interaction need to be combined in a compact installation.
Typical Applications
- Machine guard doors and movable protective guards.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated production and assembly equipment.
- Conveyor and material handling systems.
- Guarded access points requiring integrated local controls.
- OEM machinery and factory automation installations.
