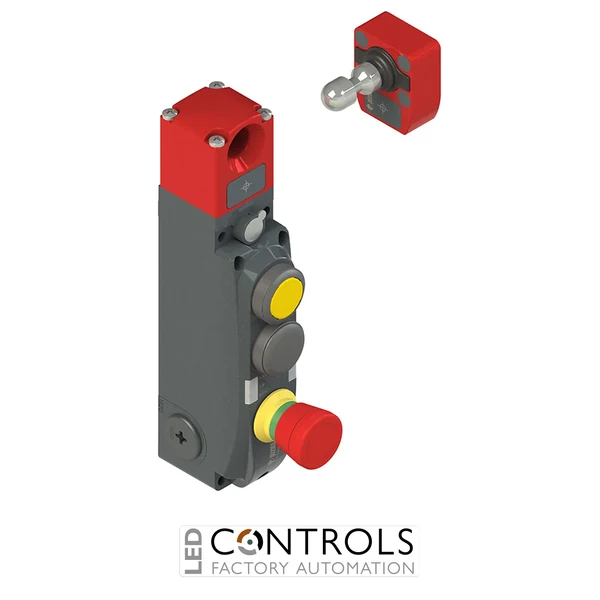

Why Choose the Pizzato NG 2D1E413W-F30 Safety Switch?
The Pizzato NG 2D1E413W-F30 is an advanced NG series RFID safety switch with guard locking and integrated control devices, designed for monitoring movable guards and controlling access to hazardous areas on industrial machinery. Its integrated construction combines electronic guard detection, monitored locking and local operator-control functionality within a robust metal housing.
This configuration uses the E operating principle, with the actuator locked when the electromagnet is energised. It provides two IS1–IS2 safety inputs and two OS1–OS2 safety outputs, together with an O3 signalling output for actuator-inserted status and an O4 signalling output for actuator-locked status. Mode 1 operation means the safety outputs are active when the actuator is inserted and locked.
The NG 2D1E413W-F30 is supplied with the VN NG-F30 low-level coded actuator and has a three-device cover configuration. Its metal housing features an orientable head and three threaded M20 × 1.5 cable entries, while the NG platform provides a high actuator holding force of 9750 N for demanding industrial guard-locking applications.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated operator controls in one safety device.
- E operating principle locks the actuator when the electromagnet is energised.
- Provides two safety inputs and two electronic safety outputs for safety-related machine control.
- Separate O3 and O4 outputs provide actuator-inserted and actuator-locked status information.
- Three-device cover configuration integrates local operator-control functions with the safety switch.
- Supplied with the VN NG-F30 low-level coded actuator.
- High 9750 N actuator holding force supports demanding machine-guard applications.
- Robust metal housing and orientable head provide installation flexibility for industrial machinery.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- Non-contact RFID actuator detection.
- E operating principle with actuator locked when the electromagnet is energised.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- I4 or IE1–IE2 inputs for electromagnet activation.
- I3 input for actuator programming / reset.
- Mode 1 safety outputs active when the actuator is inserted and locked.
- VN NG-F30 actuator with low coding level.
- Three integrated control-device positions.
- Metal housing with three threaded M20 × 1.5 cable entries.
- Orientable head for flexible machine installation.
- IP65 protection according to EN 60529.
Reliable RFID Guard Locking with Integrated Controls
The Pizzato NG 2D1E413W-F30 is designed for machinery where a protective guard must be monitored and access controlled according to machine conditions. Its RFID-based actuator detection and monitored locking system allow a suitable safety-related control system to supervise whether the actuator is inserted and locked before permitting hazardous machine operation.
The three-device cover configuration enables operator controls to be integrated directly with the guard-locking switch, helping reduce the need for a separate control enclosure at the access point. Combined with its metal housing, 9750 N actuator holding force and electronic safety architecture, the NG 2D1E413W-F30 provides a comprehensive solution for automated machinery and industrial guarding systems.
Typical Applications
- Machine guard doors and movable protective guards.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated production and assembly equipment.
- Conveyor and material handling systems.
- Guarded access points requiring integrated local operator controls.
- OEM machinery and factory automation installations.
