Why Choose the Pizzato NG 2D1E414K-F30 Safety Switch?

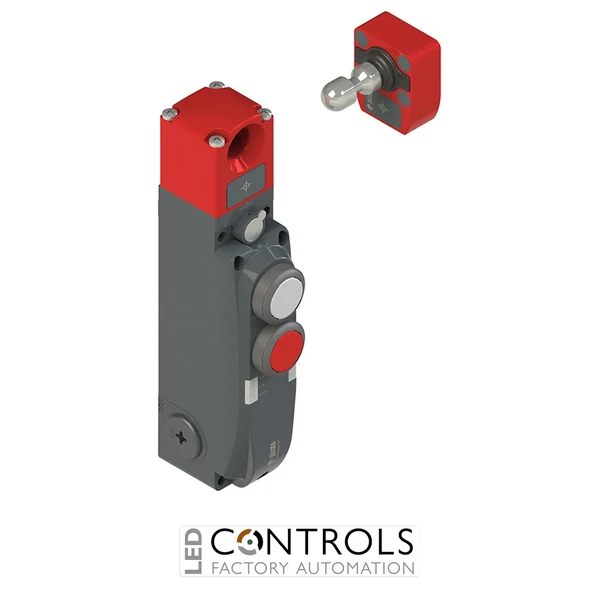

The Pizzato NG 2D1E414K-F30 is an NG series safety switch with guard locking and integrated control devices, designed for safety monitoring of movable machine guards and controlled access points. Combining electronic actuator detection, guard locking and operator-control functionality in one assembly, it provides a compact solution for industrial machinery and automated production systems.
As part of Pizzato's NG family, the switch uses electronic safety technology to supervise the associated actuator and guard condition. Its safety outputs can be integrated with a suitable safety controller or safety-related control system, allowing machine operation to be managed according to the status of the protected guard and locking function.
The NG 2D1E414K-F30 is supplied with the VN NG-F30 actuator, which provides a low coding level according to EN ISO 14119. The integrated control-device arrangement places useful operator functions directly at the guarded access point, reducing the need for separate control stations and helping create a clean, efficient machine installation.
Key Advantages
- Combines guard monitoring, guard locking and integrated controls in one device.
- Electronic actuator detection supports dependable machine-guard supervision.
- Electronic safety outputs enable integration with modern safety controllers.
- Integrated control devices provide convenient operator functions at the guarded access point.
- VN NG-F30 coded actuator is supplied with the switch.
- Low-level coded actuator configuration is defined in accordance with EN ISO 14119.
- NG-series architecture is suited to demanding industrial automation and machine-building applications.
- Compact integrated construction can reduce the number of separate devices required around a machine guard.
Key Features
- Pizzato NG series safety switch with lock.
- Integrated control devices for local operator functions.
- Electronic coded-actuator detection.
- Integrated guard-locking function.
- Electronic safety outputs for connection to suitable safety-related control systems.
- Guard and actuator status monitoring.
- VN NG-F30 low-level coded actuator.
- Designed for movable guards, doors and protected machine access points.
- Suitable for automated machinery requiring controlled operator access.
- Industrial construction for OEM machinery and factory automation.
Integrated Guard Locking for Modern Machinery
Machine applications with hazardous movements or processes can require more than simple guard-position detection. A guard-locking safety switch allows the machine safety system to supervise a protected access point and manage the locking function according to the operating state of the equipment, helping prevent inappropriate access to hazardous areas.
The Pizzato NG 2D1E414K-F30 combines this guard-locking functionality with electronic actuator detection and integrated operator controls. This consolidated approach is particularly useful on automated equipment where safety monitoring and local machine controls need to be positioned together at a guard door or access point.
Typical Applications
- Machine guard doors and movable protective guards.
- Robotic cells and automated manufacturing equipment.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Conveyor and material handling systems.
- Guarded access points requiring local operator controls.
- OEM machinery and factory automation systems.
