Why Choose the Pizzato NG 2D1E521D-F30 Safety Switch with Lock?

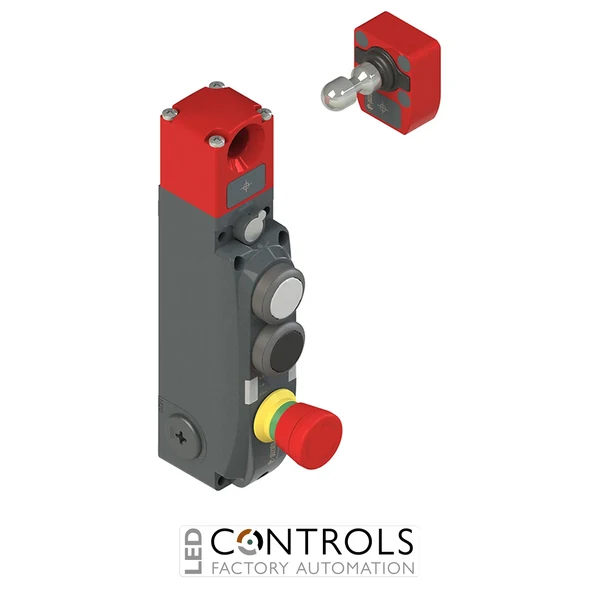

The Pizzato NG 2D1E521D-F30 is an advanced NG series safety switch with guard locking and integrated control devices, supplied complete with a low-coded actuator. Designed for industrial machine guarding, it combines electronic safety monitoring, robust guard locking and local operator controls within a durable metal housing.
As part of the Pizzato NG series, the NG 2D1E521D-F30 provides two safe inputs and two safe outputs together with actuator-position and locking-status signalling. It also incorporates an EDM feedback input for monitoring external devices. Its E working principle locks the actuator when the electromagnet is energised, providing electrically controlled guard retention for industrial safety systems.
This configuration incorporates a white pushbutton with 1NO + 1NC contacts, a black pushbutton with 1NO + 1NC contacts and a red emergency-stop pushbutton with turn-to-release action and 2NC contacts. Supplied complete with the VN NG-F30 low-coding-level actuator, the switch provides a maximum holding force of 9750 N for demanding guarded machinery.
Key Advantages
- Combines guard monitoring, guard locking and three operator control devices in one unit.
- Supplied complete with the VN NG-F30 low-coded actuator.
- 9750 N maximum holding force provides robust guard retention.
- Integrated white and black pushbuttons provide convenient local machine controls.
- Integrated red turn-to-release emergency-stop pushbutton with 2NC contacts.
- Includes an I5 EDM feedback input for external device monitoring.
- Separate signalling outputs indicate actuator insertion and locking status.
- Robust metal housing with orientable head supports flexible industrial installation.
Key Features
- Pizzato NG series safety switch with guard locking.
- VN NG-F30 low-coding-level actuator included.
- E working principle with actuator locked when the electromagnet is energised.
- 9750 N maximum holding force.
- Position 1: white pushbutton, 1NO + 1NC.
- Position 2: black pushbutton, 1NO + 1NC.
- Position 3: red emergency-stop pushbutton, turn-to-release, 2NC.
- 2 safe inputs: IS1 and IS2.
- 2 safe outputs: OS1 and OS2.
- Mode 2 safety-output activation: outputs active with actuator inserted.
- O3 signalling output indicates actuator inserted.
- O4 signalling output indicates actuator locked.
- I5 feedback input (EDM) for external device monitoring.
- I3 actuator programming / reset input.
- I4 or IE1-IE2 electromagnet activation inputs.
- Metal housing with three M20 × 1.5 threaded cable entries.
- IP65 protection for the integrated-control configuration.
Reliable Guard Locking with External Device Monitoring
Safety switches with guard locking allow industrial safety systems to monitor protective guards while controlling access to hazardous machine areas. The Pizzato NG series combines electronic safety inputs and outputs with electromagnet-operated locking and independent status signalling, allowing the machine controller to determine both guard position and locking condition.
The NG 2D1E521D-F30 additionally provides an EDM feedback input for monitoring external switching devices. Together with its integrated operator pushbuttons, emergency-stop control and Mode 2 safety-output logic, this makes the switch a comprehensive solution for automated machinery requiring guard monitoring, local controls and integration with external safety devices.
Typical Applications
- Industrial machine guard doors and access panels.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Conveyor and material handling equipment.
- Machine tools and manufacturing equipment.
- Guarding systems requiring integrated emergency-stop functionality.
- Machine-safety systems requiring EDM feedback monitoring.
