Why Choose the Pizzato NG 2D1E621A Safety Switch?

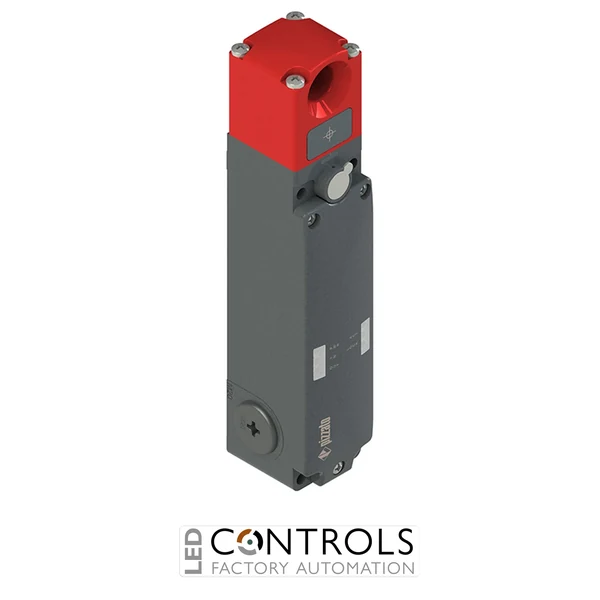

The Pizzato NG 2D1E621A is an advanced safety switch with guard locking designed to monitor machine guards and prevent access to hazardous areas until safe operating conditions have been achieved. As part of the Pizzato NG series RFID safety locking switches, it combines electronic coded actuator recognition, secure locking and intelligent safety monitoring for demanding industrial automation applications.
This safety switch is designed for machinery where hazardous conditions may remain after shutdown, such as machines with mechanical inertia, stored pressure or high-temperature components. The NG series uses RFID technology to detect coded actuators and supports advanced safety architectures up to PL e and SIL 3 when correctly integrated.
The NG 2D1E621A features a robust metal housing, guard locking function and electronic safety monitoring, making it suitable for safety doors, protective guards and automated production equipment requiring secure access control.
Key Advantages
- Advanced RFID-coded safety switch with guard locking for industrial machine protection.
- High coding level actuator technology improves resistance against actuator manipulation.
- 9750 N actuator holding force provides secure guard locking performance.
- IP67 / IP69K protection supports demanding industrial environments.
- Electronic safety monitoring supports integration with safety PLCs and safety modules.
- Metal housing construction provides reliable operation in industrial applications.
Key Features
- Pizzato NG RFID safety locking switch series.
- Safety switch with lock configuration.
- Electronic RFID coded actuator detection technology.
- Digitally coded actuator system for enhanced safety protection.
- Two safety inputs and two safety outputs for safety circuit integration.
- Signalling outputs for actuator inserted and actuator locked status.
- Rotating head design for flexible machine installation.
- Metal housing with three M20 conduit entries.
- LED diagnostic indication for device status monitoring.
Reliable Machine Guard Protection and Access Control
The Pizzato NG series uses RFID-coded electronic technology to identify the dedicated actuator and provide reliable machine guard monitoring. The coded actuator system helps prevent unsafe bypassing while allowing safety systems to verify guard position and locking status.
With secure guard locking, diagnostic feedback and compatibility with safety modules or safety PLC systems, the NG 2D1E621A provides machine builders with a dependable solution for automated production environments and industrial machinery.
Typical Applications
- Industrial machinery safety guarding.
- Automated production and assembly systems.
- Robotic manufacturing cells.
- Packaging and processing equipment.
- Safety doors and machine access protection systems.
- OEM machine building and industrial automation applications.
