Why Choose the Pizzato NG 2D5D322J-F31 Safety Switch?

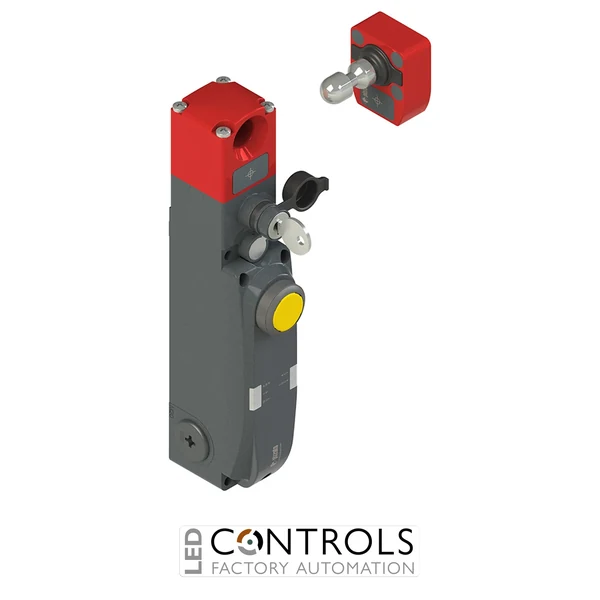

The Pizzato NG 2D5D322J-F31 is an advanced RFID safety switch with guard locking, integrated control devices and high-level coded actuator, designed for monitoring and securing movable guards on industrial machinery. Part of the Pizzato NG series, it combines electronically coded guard detection, high-force guard locking, electronic safety outputs and local operator-control functionality in one robust assembly.
This configuration uses working principle D, meaning the actuator is locked when the electromagnet is de-energised. This power-to-release arrangement is suited to machinery where the guard should remain mechanically retained if power to the locking circuit is removed. The integrated control-device cover places operator functions directly at the guarded access point, helping consolidate machine safety and control components.
Supplied complete with the VN NG-F31 high-level coded actuator, the NG 2D5D322J-F31 provides a maximum actuator holding force of 9750 N. Its metal housing, orientable head, RFID actuator recognition and integrated diagnostic indication make it a versatile solution for automated machinery and safety-critical production equipment.
Key Advantages
- Combines guard monitoring, guard locking and integrated operator controls within one device.
- Supplied with VN NG-F31 high-level coded actuator for enhanced resistance to manipulation.
- 9750 N maximum holding force supports secure retention of industrial machine guards.
- Power-to-release D working principle keeps the actuator locked when the electromagnet is de-energised.
- RFID actuator recognition provides reliable electronically coded guard detection.
- Electronic safety outputs and diagnostic signalling simplify integration with modern machine-safety systems.
Key Features
- Pizzato NG series RFID safety locking switch.
- Integrated control devices for local operator functionality.
- VN NG-F31 high-level coded actuator included.
- Working principle D, actuator locked with de-energised electromagnet.
- 9750 N maximum actuator holding force.
- Two safe inputs IS1 and IS2.
- Two electronic safety outputs OS1 and OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- Input for actuator programming / reset.
- Electronic control of the guard-locking electromagnet.
- RFID technology with high-level actuator coding.
- Integrated status indication for diagnostics and commissioning.
- Orientable head for flexible installation on machine guards.
Reliable Guard Monitoring for Industrial Machinery
RFID safety locking switches such as the Pizzato NG series are designed for applications where access to hazardous machinery must be monitored and the associated guard physically retained until entry is safe. High-level coded actuator recognition provides enhanced protection against manipulation while communicating guard status electronically to the machine safety system.
The NG 2D5D322J-F31 combines high-level coded detection with power-to-release guard locking and integrated operator controls. Its dual safe inputs, electronic safety outputs and dedicated actuator and locking status signals provide a comprehensive interface for modern safety controllers, while the high holding force supports secure guard retention on demanding industrial machinery.
Typical Applications
- Industrial machine guard doors and access panels.
- Robotic cells and automated production equipment.
- Packaging and processing machinery.
- Automated manufacturing and assembly lines.
- CNC machines and industrial machine tools.
- Conveyor and material handling systems.
- Machinery requiring power-to-release guard locking and local operator controls.
