Why Choose the Pizzato NG 2D5D411C-F30 Safety Switch with Lock?

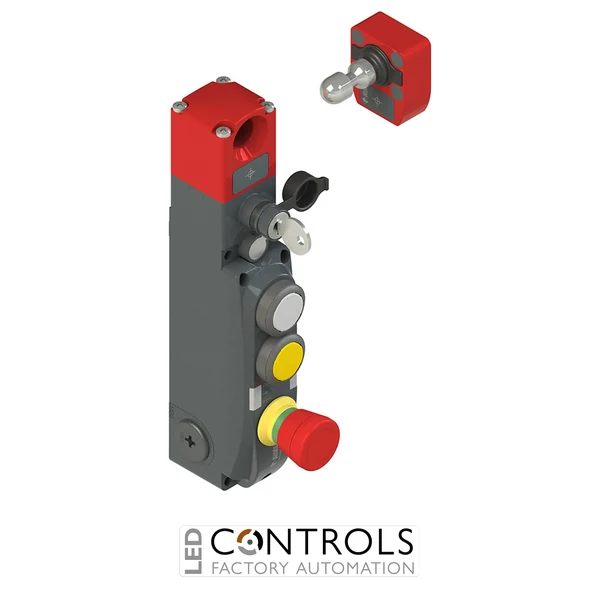

The Pizzato NG 2D5D411C-F30 is an advanced NG series RFID safety switch with guard locking and integrated control devices, supplied complete with a low-coded actuator. Designed for industrial machine guarding, it combines electronic guard monitoring, electromagnetic locking and local operator controls within a robust metal housing.
This model uses the D5D configuration, providing locking with the electromagnet de-energised together with an auxiliary key-release function. Its Mode 1 safety logic activates the OS1 and OS2 safety outputs when the actuator is inserted and locked, while separate signalling outputs allow the control system to monitor actuator insertion and locking status.
The NG 2D5D411C-F30 incorporates a white pushbutton, a yellow pushbutton and an emergency-stop control. It is supplied with the VN NG-F30 low-coding-level actuator and provides a maximum holding force of 9750 N, making it suitable for demanding automated machinery and guarded production equipment.
Key Advantages
- Combines RFID guard monitoring, electromagnetic locking and integrated operator controls in one device.
- Supplied complete with the VN NG-F30 low-coded actuator.
- 9750 N maximum holding force provides robust guard retention.
- D5D locking configuration retains the actuator when the locking electromagnet is de-energised.
- Includes an auxiliary key-release function for manual unlocking when required by the machine design.
- Integrated white and yellow pushbuttons plus emergency-stop control reduce the need for separate operator devices.
- Mode 1 safety logic monitors the inserted and locked condition of the actuator.
- Separate status outputs provide actuator-inserted and actuator-locked information.
- Metal construction provides durability for industrial machine installations.
Key Features
- Pizzato NG series RFID safety switch with guard locking.
- VN NG-F30 actuator included.
- Low coding level according to EN ISO 14119.
- D5D configuration – locking with electromagnet de-energised and auxiliary key release.
- 24 V DC ±10% nominal operating voltage.
- 9750 N maximum holding force.
- Mode 1: OS1 and OS2 safety outputs active with actuator inserted and locked.
- 2 safety inputs: IS1 and IS2.
- 2 safety outputs: OS1 and OS2.
- O3 signalling output indicates actuator inserted.
- O4 signalling output indicates actuator locked.
- Integrated white pushbutton.
- Integrated yellow pushbutton.
- Integrated emergency-stop control.
- Metal, powder-coated housing.
- Three M20 × 1.5 threaded cable entries.
- IP65 protection according to EN 60529 for versions with integrated control devices.
RFID Guard Monitoring with De-Energised Locking
The Pizzato NG 2D5D411C-F30 combines RFID actuator detection with electromagnetic guard locking so that a machine-safety system can monitor a movable guard while controlling access to hazardous areas. Its D5D configuration retains the actuator when the locking electromagnet is de-energised and incorporates an auxiliary key-release mechanism for manual unlocking where required by the machine design.
With Mode 1 safety-output activation, OS1 and OS2 become active when the actuator is inserted and locked. Separate O3 and O4 signalling outputs provide additional actuator-position and lock-status information, while the integrated white and yellow pushbuttons and emergency-stop control provide local operator functionality directly at the guarded access point.
Typical Applications
- Industrial machine guard doors and access panels.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Conveyor and material-handling systems.
- Machine tools and production equipment.
- Guarding systems requiring de-energised electromagnetic locking.
- Machinery requiring auxiliary key-release functionality.
- Applications requiring integrated operator and emergency-stop controls.
