Why Choose the Pizzato NG 2D5D411H-F31 Safety Switch with Lock?

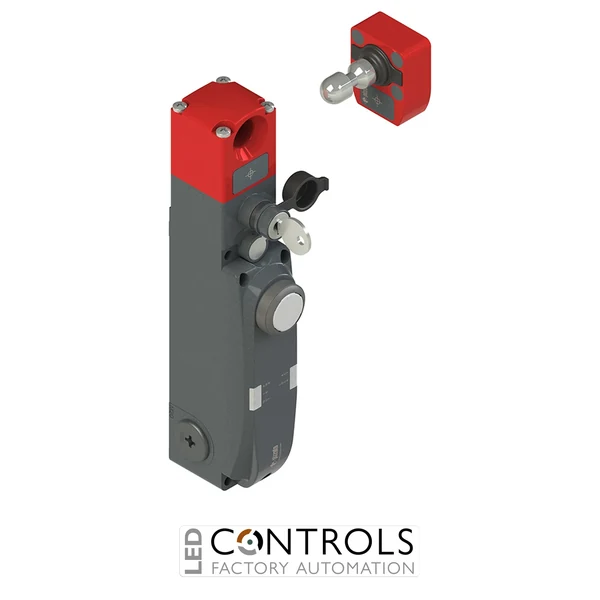

The Pizzato NG 2D5D411H-F31 is an advanced NG series RFID safety switch with guard locking and an integrated control device, supplied complete with a high-coded actuator. Designed for industrial machine guarding, it combines non-contact RFID actuator detection, electromagnetic guard locking and local operator control within a robust metal housing.
This configuration uses the D working principle, meaning the actuator is locked while the locking electromagnet is de-energised. Its Mode 1 safety logic activates the OS1 and OS2 safety outputs when the actuator is inserted and locked, while separate O3 and O4 signalling outputs provide actuator-inserted and actuator-locked status information.
The NG 2D5D411H-F31 incorporates a single white pushbutton with 1NO + 1NC contacts and features an orientable head with auxiliary key release. Supplied complete with the VN NG-F31 high-coding-level actuator, it provides a maximum holding force of 9750 N for demanding guarded machinery and automated production equipment.
Key Advantages
- Combines RFID guard monitoring, electromagnetic locking and local operator control in one device.
- Supplied complete with the VN NG-F31 high-coding-level actuator.
- 9750 N maximum holding force provides robust guard retention.
- D working principle retains the actuator while the locking electromagnet is de-energised.
- Mode 1 safety logic requires the actuator to be inserted and locked for safety-output activation.
- Integrated white 1NO + 1NC pushbutton provides convenient local operator control.
- Auxiliary key release provides a means of manually releasing the locking mechanism when required by the machine design.
- Separate O3 and O4 signalling outputs provide guard-position and locking-status information.
- Robust metal housing and orientable head support flexible industrial installation.
Key Features
- Pizzato NG series RFID safety switch with electromagnetic guard locking.
- VN NG-F31 high-coded actuator included.
- High coding level according to EN ISO 14119.
- D working principle – actuator locked with electromagnet de-energised.
- 9750 N maximum holding force.
- Cover configuration: 1 integrated control device.
- Position 1: white pushbutton, 1NO + 1NC.
- 2 safety inputs: IS1 and IS2.
- 2 safety outputs: OS1 and OS2.
- Mode 1: safety outputs active with actuator inserted and locked.
- O3 signalling output indicates actuator inserted.
- O4 signalling output indicates actuator locked.
- I4 or IE1-IE2 inputs provide electromagnet activation control.
- I3 provides actuator programming / reset functionality.
- Orientable head with auxiliary key release.
- Metal housing with three M20 × 1.5 threaded cable entries.
- IP65 protection according to EN 60529.
RFID Guard Monitoring with De-Energised Locking
The Pizzato NG 2D5D411H-F31 combines RFID actuator detection with electromagnetic guard locking so that a machine-safety system can monitor a movable guard while controlling access to hazardous areas. Its D working principle retains the actuator while the locking electromagnet is de-energised, and its Mode 1 configuration enables the safety outputs when the actuator is both inserted and locked.
An auxiliary key-release mechanism is incorporated into the orientable head to provide manual release of the locking mechanism when required by the machine design. Together with the VN NG-F31 high-coded actuator, integrated white pushbutton and independent actuator-status outputs, this configuration provides a comprehensive guard-access solution for automated industrial machinery.
Typical Applications
- Industrial machine guard doors and access panels.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Conveyor and material-handling systems.
- Machine tools and production equipment.
- Guarding systems requiring de-energised electromagnetic locking.
- Applications requiring high-coded RFID actuator monitoring.
- Machinery requiring auxiliary key-release functionality.
- Guarded access points requiring an integrated local pushbutton.
