Why Choose the Pizzato NG 2D5D411L-F31 Safety Switch?

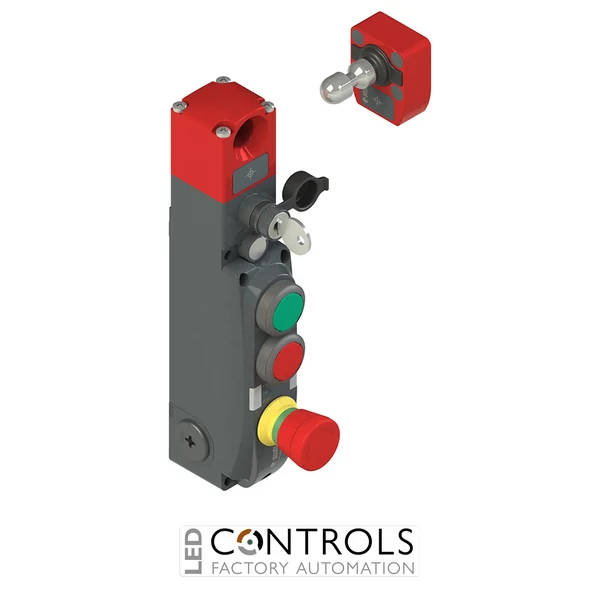

The Pizzato NG 2D5D411L-F31 is an advanced RFID safety switch with guard locking and integrated control devices designed for reliable machine safety monitoring in industrial automation environments. As part of the Pizzato NG series safety switch range, it combines high coding RFID actuator technology, electronic safety monitoring and integrated operator controls in a single compact device.
This safety switch is designed for applications where machine guards must remain locked until hazardous conditions have ended. The integrated control devices simplify machine installation while the high coding level actuator provides enhanced protection against actuator tampering and unauthorised bypassing.
Featuring a metal housing, de-energised solenoid locking principle and a supplied VN NG-F31 high coding actuator, the NG 2D5D411L-F31 provides dependable guard monitoring for demanding machinery applications. It supports safety functions with electronic safety inputs and outputs for connection to safety controllers or PLC systems.
Key Advantages
- RFID coded safety switch with guard locking for enhanced machine protection.
- Integrated control devices reduce installation requirements and panel components.
- High coding level VN NG-F31 actuator helps prevent safety system manipulation.
- 9750 N locking force suitable for demanding industrial guarding applications.
- IP65 protection rating for reliable operation in industrial environments.
- Electronic safety outputs support modern safety PLC and control architectures.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- Supplied with VN NG-F31 high coding RFID actuator.
- D working method with locked actuator and de-energised solenoid.
- 2 safety inputs IS1-IS2 and 2 safety outputs OS1-OS2.
- Signalling outputs for actuator inserted and actuator locked status.
- Solenoid activation inputs and actuator programming/reset input.
- Metal housing with three M20x1.5 threaded cable entries.
- Integrated status indication LED.
- Connection type: without connector.
Reliable Machine Guard Locking and Safety Control
The Pizzato NG series combines RFID coded actuator recognition with electronic safety monitoring to provide dependable protection for machinery access points. The locking function prevents guards from being opened while dangerous machine movement or processes remain active.
The NG 2D5D411L-F31 is suitable for integration into modern automation systems where reliable guard monitoring, tamper resistance and efficient installation are required. Its integrated controls and electronic architecture make it an effective solution for machine builders and industrial safety engineers.
Typical Applications
- Industrial machine guarding and access protection.
- Production and assembly machinery.
- Packaging and processing equipment.
- Robotic cells and automated manufacturing systems.
- Machines with hazardous movement requiring guard locking.
- OEM machinery and industrial automation installations.
