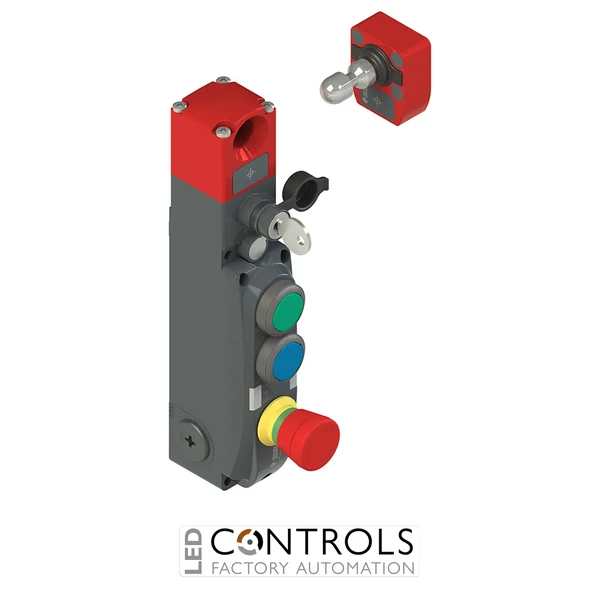

Why Choose the Pizzato NG 2D5D413C-F31 Safety Switch with Lock?
The Pizzato NG 2D5D413C-F31 is an advanced NG series safety switch with guard locking, integrated control devices and high-coded actuator designed for protected access points on industrial machinery. It combines electronic safety monitoring, robust guard locking and three operator-control devices within one integrated assembly, helping machine builders create compact and functional guard-door safety stations.
This configuration incorporates three integrated control devices: a white pushbutton with 1NO + 1NC contacts, a yellow pushbutton with 1NO + 1NC contacts, and a red emergency pushbutton with two NC contacts and turn-to-release operation. This allows routine operator controls and an emergency function to be located directly alongside the guard-locking switch.
The NG 2D5D413C-F31 uses Pizzato's D working method, with the actuator locked when the solenoid is de-energised. It is supplied complete with the VN NG-F31 high-coding-level actuator and provides two safety inputs, two safety outputs and dedicated signalling outputs for actuator insertion and locking status.
Key Advantages
- Combines guard locking, electronic safety monitoring and three integrated control devices.
- Supplied complete with a VN NG-F31 high-coding-level actuator.
- Integrated white and yellow pushbuttons each provide 1NO + 1NC contacts.
- Integrated red emergency pushbutton with 2NC contacts and turn-to-release operation.
- De-energised-to-lock working method provides secure guard retention according to the machine safety strategy.
- Two electronic safety inputs and two safety outputs support modern safety-control architectures.
- Separate signalling outputs indicate actuator insertion and confirmed locking status.
- Metal housing provides robust construction for industrial machinery installations.
Key Features
- Pizzato NG series safety switch with lock and integrated controls.
- Cover position 1: white pushbutton, 1NO + 1NC.
- Cover position 2: yellow pushbutton, 1NO + 1NC.
- Cover position 3: red emergency pushbutton, turn to release, 2NC.
- D working method: actuator locked with de-energised solenoid.
- 2 safety inputs: IS1 and IS2.
- 2 safety outputs: OS1 and OS2.
- O3 signalling output: actuator inserted.
- O4 signalling output: actuator locked.
- I4 or IE1-IE2 inputs for solenoid activation.
- I3 input for actuator programming / reset.
- Mode 1 safety-output activation with actuator inserted and locked.
- Supplied with VN NG-F31 high-coded actuator.
- Metal housing with three M20 × 1.5 threaded conduit entries.
Reliable Guard Locking with Integrated Machine Controls
The Pizzato NG series combines electronic actuator monitoring with mechanical guard locking to provide a comprehensive solution for protected machinery access points. In the NG 2D5D413C-F31, activation mode 1 means the OS1 and OS2 safety outputs are active when the high-coded actuator is inserted and locked, enabling compatible safety-control equipment to monitor the required guard condition.
Integrating two standard pushbuttons and a red emergency pushbutton directly into the switch assembly provides useful local operator functions without requiring a separate control station at the guard. Together with the VN NG-F31 high-coded actuator and dedicated guard-status outputs, this makes the NG 2D5D413C-F31 particularly suitable for sophisticated automated machinery and production equipment.
Typical Applications
- Industrial machine guard doors and access gates.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Machine tools and manufacturing equipment.
- Material handling and conveyor systems.
- OEM machinery requiring guard locking with integrated operator and emergency controls.
