Why Choose the Pizzato NG 2D5D413G-F31 Safety Switch?
The Pizzato NG 2D5D413G-F31 is an advanced RFID safety switch with guard locking and integrated control devices designed for reliable machine safety monitoring in industrial automation systems. As part of the Pizzato NG series safety switch range, it combines electronic safety technology, high coding RFID actuator recognition and integrated operator controls in a compact industrial device.
This safety switch is designed for applications where machine guards must remain locked until hazardous movement has stopped. The integrated control devices help simplify machine installation, while the coded RFID actuator provides enhanced protection against unauthorised bypassing and actuator duplication.
The NG 2D5D413G-F31 includes a VN NG-F31 high coding RFID actuator and uses a reliable de-energised solenoid locking principle. With electronic safety inputs and outputs, it is suitable for integration into modern safety PLC and industrial automation systems.
Key Advantages
- RFID coded safety switch with guard locking for enhanced machine protection.
- Integrated control devices reduce additional installation components.
- High coding VN NG-F31 actuator improves resistance against safety system manipulation.
- 9750 N locking force provides secure machine guard locking.
- IP65 protection rating suitable for industrial environments.
- Electronic safety monitoring enables flexible connection to safety control systems.
Key Features

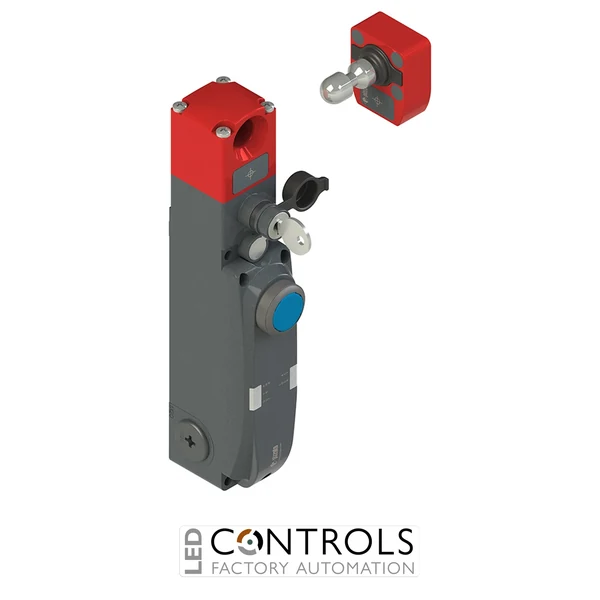

- Pizzato NG series safety switch with lock and integrated control devices.
- Supplied with VN NG-F31 high coding RFID actuator.
- D working method with locked actuator and de-energised solenoid.
- 2 safety inputs IS1-IS2 and 2 safety outputs OS1-OS2.
- Signalling outputs for actuator inserted and actuator locked status.
- Solenoid activation inputs and actuator programming/reset input.
- Metal housing with three M20x1.5 threaded cable entries.
- Integrated LED status indication.
- Connection type: without connector.
Reliable Machine Guard Locking and Safety Control
The Pizzato NG series combines RFID coded actuator technology with electronic safety monitoring to provide dependable protection for machine access points. The high coding actuator identification system helps prevent safety circuits from being bypassed while maintaining reliable guard monitoring.
The NG 2D5D413G-F31 is designed for machine builders and automation engineers requiring secure guard locking, efficient installation and integration with modern industrial safety architectures.
Typical Applications
- Industrial machine guarding and safety door monitoring.
- Packaging and production machinery.
- Robotic cells and automated manufacturing systems.
- Assembly and processing equipment.
- Machines with hazardous movement requiring guard locking.
- OEM machinery and industrial automation installations.
