Why Choose the Pizzato NG 2D5D414Z-F31 Safety Switch?

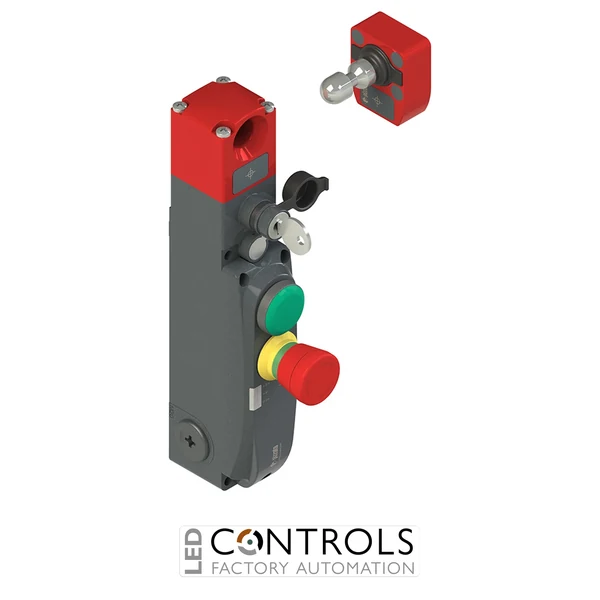

The Pizzato NG 2D5D414Z-F31 is an advanced RFID safety switch with guard locking, integrated control devices and high-level coded actuator, designed for monitoring and securing movable guards on industrial machinery. Part of the Pizzato NG series, it combines electronically coded guard detection, high-force mechanical locking, electronic safety outputs and operator-control functionality within a robust industrial assembly.
This configuration uses working principle D, meaning the actuator is locked when the electromagnet is de-energised. This power-to-release operating principle helps keep the guard mechanically retained if power to the locking circuit is removed, making the switch particularly suitable for machinery where controlled access to hazardous areas is required.
The NG 2D5D414Z-F31 is supplied complete with the VN NG-F31 high-level coded actuator and uses the NG series high-strength locking mechanism with a holding force of 9750 N. Its metal housing, orientable head, integrated status indication and dedicated safety and signalling outputs provide a comprehensive solution for modern automated machinery.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated operator controls within one device.
- Supplied with VN NG-F31 high-level coded actuator for enhanced protection against manipulation.
- 9750 N holding force supports secure retention of industrial machine guards.
- Power-to-release working principle D keeps the actuator locked when the electromagnet is de-energised.
- Electronic safety outputs support straightforward integration with modern safety controllers.
- Integrated status signalling assists commissioning, diagnostics and machine maintenance.
Key Features
- Pizzato NG series RFID safety locking switch.
- Integrated control devices for local operator functionality.
- VN NG-F31 high-level coded actuator included.
- High-level coded RFID actuator recognition.
- Working principle D, actuator locked with de-energised electromagnet.
- 9750 N holding force.
- Two safe inputs IS1 and IS2.
- Two safe electronic outputs OS1 and OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- Electronic interface for activation of the guard-locking electromagnet.
- Actuator programming / reset functionality.
- Integrated status indication for diagnostics.
- Robust metal housing for industrial installations.
- Orientable head for flexible guard installation.
Reliable Guard Monitoring for Industrial Machinery
Pizzato NG RFID safety locking switches are designed for machinery where movable guards must be electronically monitored and physically retained while hazardous machine functions remain active. RFID actuator recognition provides coded guard detection without relying on conventional mechanical position-switch actuation, while the high-strength locking mechanism prevents premature opening of the protected guard.
The NG 2D5D414Z-F31 combines high-level coded detection with power-to-release locking, electronic safety outputs and integrated operator-control functionality. Dedicated actuator-inserted and actuator-locked signals provide useful machine-status information, helping safety controllers distinguish between guard position and locking state for reliable automation and diagnostics.
Typical Applications
- Industrial machine guard doors and access panels.
- Robotic cells and automated production equipment.
- Packaging and processing machinery.
- Automated manufacturing and assembly lines.
- CNC machines and industrial machine tools.
- Conveyor and material handling systems.
- Machinery requiring power-to-release guard locking and integrated operator controls.
