Why Choose the Pizzato NG 2D5D415T-F31 Safety Switch with Lock?

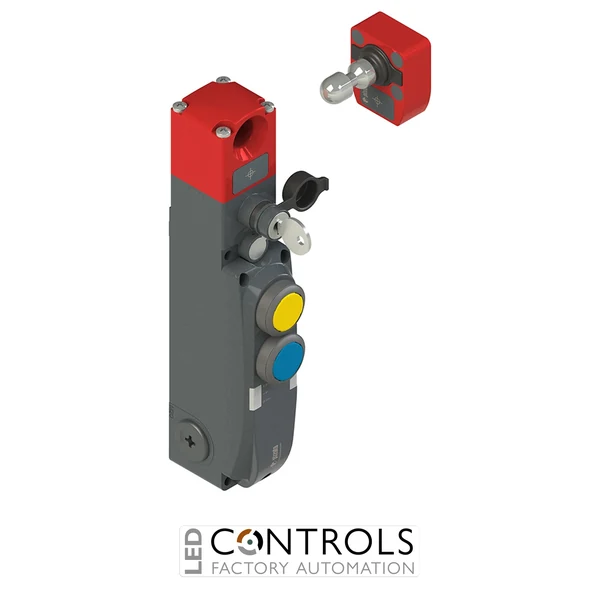

The Pizzato NG 2D5D415T-F31 is an advanced NG series safety switch with guard locking, integrated control devices and high-coded actuator designed for monitoring and controlling access to hazardous areas of industrial machinery. It combines electronic safety monitoring, robust mechanical guard locking and local operator controls in one compact assembly for demanding machine safety applications.
This configuration incorporates three integrated control devices: a white pushbutton with 1NO + 1NC contacts, a black pushbutton with 1NO + 1NC contacts, and a red emergency pushbutton with two NC contacts and turn-to-release operation. Integrating these controls directly into the safety switch can simplify guarded access stations and reduce the need for separate operator-control enclosures.
The NG 2D5D415T-F31 uses Pizzato's D working method, with the actuator locked when the solenoid is de-energised. It is supplied complete with the VN NG-F31 high-coding-level actuator and provides two safety inputs, two electronic safety outputs and dedicated signalling outputs for actuator insertion and locking status.
Key Advantages
- Combines guard locking, electronic safety monitoring and three integrated control devices.
- Supplied complete with a VN NG-F31 high-coding-level actuator.
- Integrated white and black pushbuttons each provide 1NO + 1NC contacts.
- Integrated red emergency pushbutton with 2NC contacts and turn-to-release operation.
- 9,750 N holding force provides robust guard retention.
- De-energised-to-lock operating principle supports controlled access to hazardous machinery.
- Two electronic safety inputs and two safety outputs support integration with compatible safety controllers.
- Dedicated signalling outputs indicate actuator insertion and confirmed locking status.
Key Features
- Pizzato NG series safety switch with lock and integrated controls.
- Cover position 1: white pushbutton, 1NO + 1NC.
- Cover position 2: black pushbutton, 1NO + 1NC.
- Cover position 3: red emergency pushbutton, turn to release, 2NC.
- D working method: actuator locked with de-energised solenoid.
- 2 safety inputs: IS1 and IS2.
- 2 safety outputs: OS1 and OS2.
- O3 signalling output: actuator inserted.
- O4 signalling output: actuator locked.
- I4 or IE1-IE2 inputs for solenoid activation.
- I3 input for actuator programming / reset.
- Mode 1 safety-output activation with actuator inserted and locked.
- Supplied with VN NG-F31 high-coded actuator.
- Metal housing with three M20 × 1.5 threaded conduit entries.
- IP65 protection for the integrated-control assembly.
Reliable Guard Locking with Integrated Machine Controls
The Pizzato NG series combines coded actuator detection with mechanical guard locking to provide reliable monitoring of protected machinery access points. In the NG 2D5D415T-F31, Mode 1 operation means the OS1 and OS2 safety outputs are active when the actuator is inserted and locked, enabling compatible safety-control equipment to verify the required guard condition.
Integrating white and black operator pushbuttons together with a red emergency pushbutton provides useful local machine controls directly at the guarded access point. Combined with the high-coded VN NG-F31 actuator, de-energised locking principle and dedicated guard-status outputs, this makes the NG 2D5D415T-F31 particularly suitable for sophisticated automated machinery and production systems.
Typical Applications
- Industrial machine guard doors and access gates.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Machine tools and manufacturing equipment.
- Material handling and conveyor systems.
- OEM machinery requiring guard locking with integrated operator and emergency controls.
