Why Choose the Pizzato NG 2D5D417V-F31 Safety Switch with Lock?

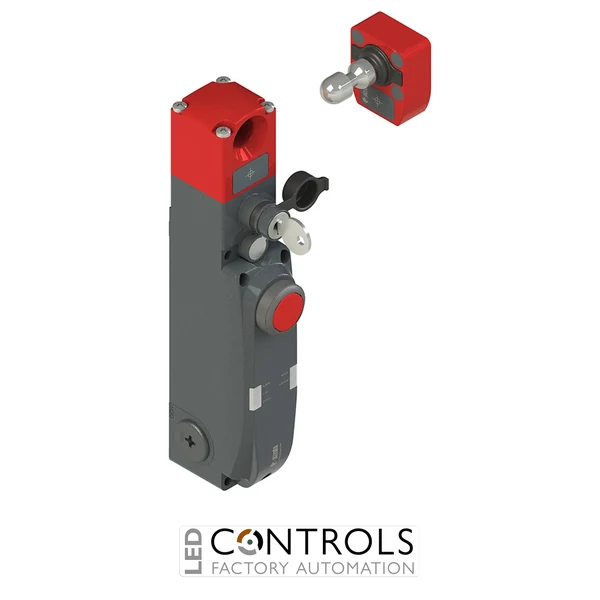

The Pizzato NG 2D5D417V-F31 is an advanced RFID safety switch with guard locking and integrated control devices designed for monitoring and controlling access to hazardous areas of industrial machinery. As part of the Pizzato NG series, it combines coded electronic actuator detection, electromechanical guard locking and operator control functions in a single robust assembly.
The switch is supplied with the VN NG-F31 uniquely coded RFID actuator, providing a high coding level for guard identification. Electronic safety outputs allow the device to interface with compatible machine safety controllers, while integrated control devices reduce the need for separate operator-interface components around the guarded access point.
Designed for demanding machine safety installations, the NG 2D5D417V-F31 features a robust metal housing and high ingress protection for industrial environments. Its integrated architecture is particularly useful for machine builders seeking to combine guard monitoring, guard locking and local control functions at a single safety access point.
Key Advantages
- Combines RFID safety monitoring, guard locking and integrated control devices in one assembly.
- Supplied with a VN NG-F31 uniquely coded RFID actuator.
- High-level actuator coding supports protection against straightforward manipulation of the interlocking function.
- Electronic safety outputs enable integration with compatible machine safety systems.
- Integrated operator controls can reduce the number of separate components required around a guard door.
- Robust construction and high ingress protection suit demanding industrial machinery installations.
Key Features
- Pizzato NG series safety switch with guard locking.
- Integrated control devices for local machine operation.
- VN NG-F31 RFID-coded actuator included.
- High-level coded actuator technology.
- Electronic guard-position monitoring.
- Electronic safety outputs for compatible safety circuits.
- Guard-lock status monitoring.
- Metal housing for robust industrial installation.
- Designed for hinged and sliding machine guards.
- IP67 / IP69K ingress protection.
Integrated Guard Locking and Operator Control
RFID safety switches monitor a movable guard by electronically recognising a coded actuator rather than relying solely on conventional mechanical contact detection. The uniquely coded actuator used with the Pizzato NG 2D5D417V-F31 supports a high coding level, making the system suitable for machinery where robust protection against guard-interlock manipulation is required.
The NG series also combines guard locking with electronic safety monitoring, allowing a correctly designed machine safety system to supervise both guard position and locking status. On the NG 2D5D417V-F31, integrated control devices place local operator functions directly at the guarded access point, providing a compact solution for sophisticated automated machinery and production systems.
Typical Applications
- Automated production machinery with guarded access points.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Machine tools and production equipment.
- Hinged and sliding safety guards requiring locking.
- OEM machinery requiring integrated safety and operator-control functions.
