Why Choose the Pizzato NG 2D5D421C-F31 Safety Switch with Lock?

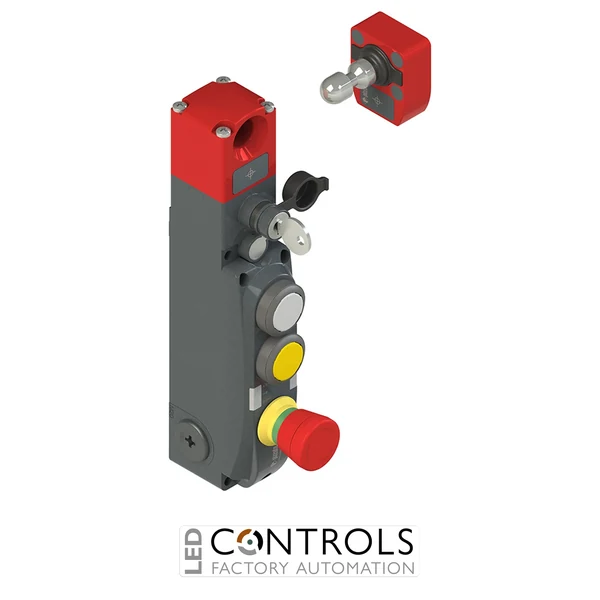

The Pizzato NG 2D5D421C-F31 is a robust RFID safety switch with guard locking and integrated control devices designed for monitoring and securing movable machine guards in demanding industrial safety applications. As part of the advanced Pizzato NG series, it combines non-contact RFID actuator detection, electromagnetic guard locking and integrated operator controls within a heavy-duty metal housing.
This safety switch uses a digitally coded RFID actuator to provide reliable guard detection while helping prevent straightforward substitution of the actuator. The supplied VN NG-F31 high-coding-level actuator supports applications requiring enhanced tamper resistance in accordance with modern machine safety principles, while redundant electronic safety architecture enables integration into high-performance safety circuits.
The NG 2D5D421C-F31 features a 9750 N maximum actuator holding force, three M20 × 1.5 cable entries and integrated control devices including white and yellow pushbuttons plus a red emergency control device. Its metal construction and IP65 protection rating with integrated controls make it suitable for machinery, automated production systems and guarded industrial equipment.
Key Advantages
- Combines RFID guard monitoring, electromagnetic locking and operator controls in one device.
- High-coding-level VN NG-F31 actuator helps reduce the risk of guard-system manipulation.
- Heavy-duty locking system with up to 9750 N maximum holding force.
- Two safety inputs and two safety outputs support integration into modern safety control systems.
- Integrated signalling outputs provide guard-present and guard-locked status information.
- Durable metal housing with three M20 × 1.5 cable entries for industrial installation.
Key Features
- Pizzato NG series RFID safety locking switch.
- Supplied with VN NG-F31 high-coding-level RFID actuator.
- Principle D operation with actuator locked when the electromagnet is de-energised.
- Mode 2 safety-output operation, with safety outputs active when the actuator is inserted.
- 2 safety inputs IS1–IS2 and 2 safety outputs OS1–OS2.
- Signalling output O3 for actuator inserted and O4 for actuator locked.
- Integrated white pushbutton 1NO + 1NC and yellow pushbutton 1NO + 1NC.
- Integrated red emergency control device with 2NC contacts.
- Metal housing with three M20 × 1.5 threaded cable entries.
- Auxiliary release and orientable head with key release.
Reliable Guard Monitoring and Locking for Industrial Machinery
RFID safety switches such as the Pizzato NG series monitor the presence of a machine guard using electronically coded, non-contact actuator detection. When combined with electromagnetic locking, the switch can prevent access to hazardous machine areas while dangerous movement or stored energy remains present.
The NG 2D5D421C-F31 further integrates operator control devices into the switch housing, reducing the number of separate components required around a guarded access point. Its safety inputs, redundant safety outputs and signalling outputs allow straightforward integration with safety PLCs, relays and machine control systems.
Typical Applications
- Guard doors on automated production machinery.
- Industrial robots and robotic manufacturing cells.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Machine tools and automated assembly equipment.
- Applications requiring high-coding-level RFID guard monitoring.
