Why Choose the Pizzato NG 2D5D517F-F30 Safety Switch with Lock?

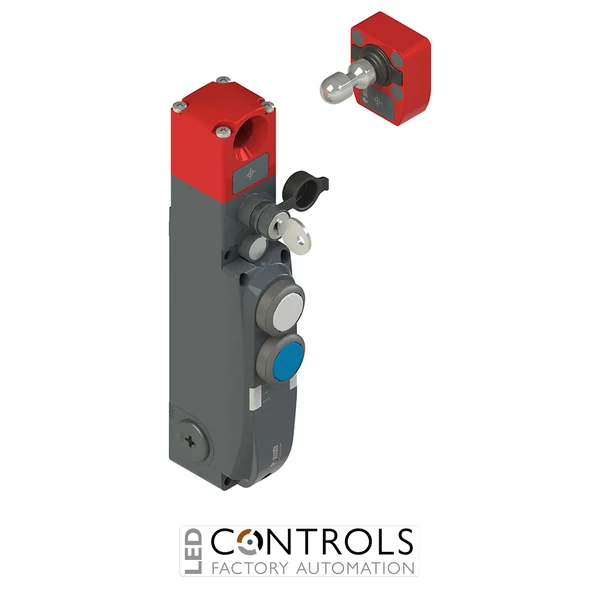

The Pizzato NG 2D5D517F-F30 is an advanced RFID safety switch with guard locking and integrated control devices designed for monitoring and securing movable guards on industrial machinery. Part of the Pizzato NG series, it combines electronically coded actuator detection, electromagnetic guard locking and operator controls within a robust metal housing.
This configuration is supplied complete with the VN NG-F30 low-coding-level actuator and uses Principle D operation, meaning the actuator remains locked when the electromagnet is de-energised. Redundant safety inputs and outputs enable integration with safety PLCs and safety relays, while dedicated signalling outputs provide actuator-inserted and actuator-locked status information to the machine control system.
The NG 2D5D517F-F30 incorporates two integrated pushbuttons, with a white pushbutton in position 1 and a blue pushbutton in position 2, each providing 1NO + 1NC contacts. The switch also features a metal housing, three M20 × 1.5 threaded cable entries, an orientable head with key-operated auxiliary release and up to 9750 N holding force.
Key Advantages
- Combines RFID guard monitoring, electromagnetic guard locking and operator controls in one device.
- Supplied complete with a VN NG-F30 RFID actuator.
- Provides up to 9750 N holding force for robust guard locking.
- Two safety inputs and two safety outputs support integration with modern machine safety systems.
- Includes an EDM feedback input for monitoring external devices.
- Dedicated signalling outputs indicate actuator inserted and actuator locked conditions.
- Durable metal housing with three M20 × 1.5 cable entries supports demanding industrial installations.
Key Features
- Pizzato NG series RFID safety locking switch.
- Supplied with VN NG-F30 low-coding-level actuator.
- Principle D operation: actuator locked with electromagnet de-energised.
- Mode 1 safety-output activation: safety outputs active when the actuator is inserted and locked.
- 2 safety inputs IS1–IS2 and 2 safety outputs OS1–OS2.
- Signalling output O3 for actuator inserted and O4 for actuator locked.
- Electromagnet activation through I4 or IE1–IE2.
- Actuator programming/reset input I3 and feedback input I5 (EDM).
- White pushbutton with 1NO + 1NC contacts.
- Blue pushbutton with 1NC + 1NO contacts.
- Orientable head with key-operated auxiliary release.
- Metal housing with three M20 × 1.5 threaded cable entries.
Reliable Guard Monitoring and Locking for Industrial Machinery
RFID safety switches such as the Pizzato NG series combine electronically coded actuator detection with guard locking to help control access to hazardous machine areas. The NG 2D5D517F-F30 uses Mode 1 operation so its safety outputs become active when the actuator is both inserted and locked, allowing the machine safety system to verify the protected guard condition.
Integrated operator controls reduce the need for separate pushbutton stations around the protected access point, while the safety, signalling and feedback connections support integration with modern safety PLCs, relays and automation systems. The metal construction and high holding force make this configuration particularly suitable for demanding industrial machinery.
Typical Applications
- Guard doors on automated production machinery.
- Robotic cells and automated assembly equipment.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Machine tools and manufacturing equipment.
- Industrial applications where hazardous conditions remain after a stop command.
