Why Choose the Pizzato NG 2D6D311C-F30 Safety Switch with Lock?

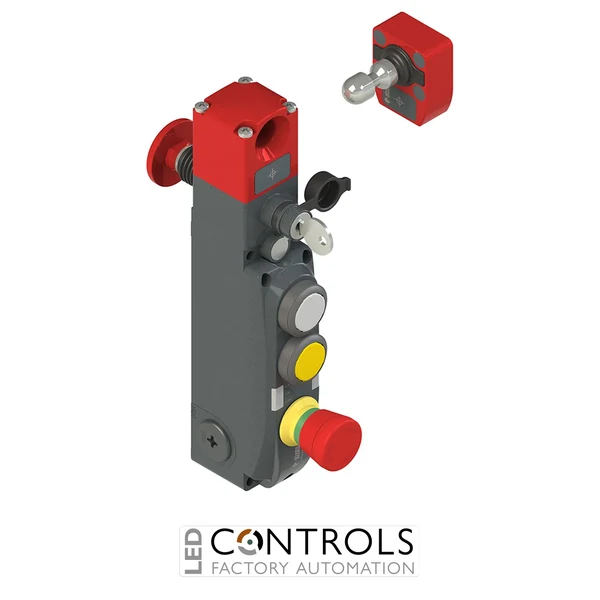

The Pizzato NG 2D6D311C-F30 is an advanced safety switch with guard locking and integrated control devices designed for monitoring and securing movable guards on industrial machinery. Part of the Pizzato NG series, it combines coded actuator detection, electromagnetic guard locking and local operator controls within a robust metal housing.
This configuration is supplied with the VN NG-F30 universal actuator with low coding level and uses Principle D operation, meaning the actuator remains locked when the solenoid is de-energised. Its electronic safety architecture provides two safety inputs and two safety outputs, together with dedicated signalling outputs for actuator-inserted and actuator-locked status.
The NG 2D6D311C-F30 incorporates a white pushbutton, yellow pushbutton and red emergency-stop button, allowing important machine-control functions to be located directly at the guarded access point. The switch also features an orientable head with key-operated auxiliary release and escape pushbutton, a 19-pin M23 connector and an IP65 protection rating for demanding industrial applications.
Key Advantages
- Combines guard monitoring, electromagnetic locking and three integrated control devices in one assembly.
- Supplied complete with a VN NG-F30 universal actuator.
- Principle D guard locking keeps the actuator locked when the solenoid is de-energised.
- Two safety inputs and two safety outputs support integration with modern machine safety systems.
- Dedicated signalling outputs indicate actuator inserted and actuator locked conditions.
- Integrated red emergency-stop button with 2NC contacts provides a local emergency control function.
- 19-pin M23 connector simplifies electrical connection and machine wiring.
- Escape pushbutton and auxiliary release provide additional means of releasing the guard-locking mechanism.
Key Features
- Pizzato NG series safety switch with guard locking.
- Complete with VN NG-F30 universal low-coding-level actuator.
- Three integrated control devices on the switch cover.
- White pushbutton with 1NO + 1NC contacts.
- Yellow pushbutton with 1NO + 1NC contacts.
- Red emergency-stop button, turn-to-release, with 2NC contacts.
- 2 safety inputs IS1–IS2 and 2 safety outputs OS1–OS2.
- Signalling output O3 for actuator inserted and O4 for actuator locked.
- Solenoid activation through I4 or IE1–IE2 inputs.
- Dedicated I3 reset input.
- Mode 1 safety-output activation, with safety outputs active when the actuator is inserted and locked.
- Orientable head with key-operated auxiliary release and escape pushbutton.
- M23 19-pin connector for electrical connection.
Reliable Guard Monitoring and Locking for Industrial Machinery
The Pizzato NG series combines coded guard detection with electromagnetic locking to help machine safety systems control access to hazardous areas. On the NG 2D6D311C-F30, Mode 1 operation means the safety outputs are active when the actuator is both inserted and locked, enabling the connected safety system to evaluate the secure condition of the movable guard.
Integrated pushbuttons and an emergency-stop control reduce the need for separate operator stations around the protected access point. The auxiliary release, escape pushbutton, electronic safety channels and status outputs make this configuration particularly suitable for automated machinery where dependable guard locking, operator control and diagnostic feedback are required.
Typical Applications
- Guard doors on automated production machinery.
- Robotic cells and automated assembly systems.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Machine tools and manufacturing equipment.
- Guarded areas requiring integrated emergency-stop and operator controls.
