Why Choose the Pizzato NG 2D6D313R-F30 Safety Switch?

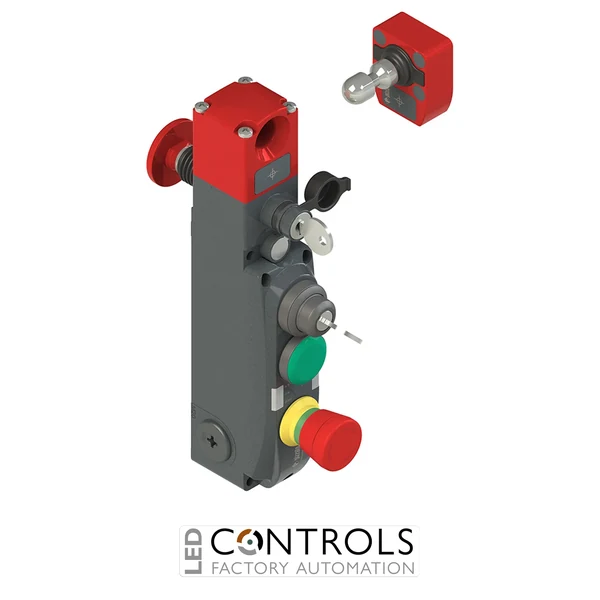

The Pizzato NG 2D6D313R-F30 is an advanced RFID safety switch with guard locking and integrated control devices designed for secure monitoring and locking of movable guards, access doors and protective panels on industrial machinery. Part of the Pizzato NG series, it combines electronic actuator recognition, mechanical guard locking and operator control functions in a robust industrial assembly.
Designed for demanding machine safety applications, the NG 2D6D313R-F30 uses RFID technology to monitor the associated actuator and provides electronic safety outputs for integration with safety PLCs and controllers. Integrated control devices allow machine builders to position essential operator functions directly at the guarded access point, helping reduce the number of separate control components required around the machine.
This configuration uses the D working principle, keeping the actuator locked while the electromagnet is de-energised, and provides a high 9750 N locking force. The -F30 version is supplied with a coded RFID actuator, providing a complete guard-monitoring and locking solution for automated production equipment, robotic cells and industrial machinery.
Key Advantages
- Combines RFID guard monitoring, mechanical locking and integrated operator controls in one assembly.
- F30 coded RFID actuator supplied for a complete switch-and-actuator solution.
- Provides a substantial 9750 N locking force for demanding guard applications.
- D working principle keeps the actuator locked while the electromagnet is de-energised.
- Electronic OSSD safety outputs support integration with modern safety control systems.
- Dedicated signalling enables monitoring of actuator and locking status.
- Integrated control devices help simplify machine-side operator interfaces.
- Robust metal construction is designed for demanding industrial environments.
Key Features
- Pizzato NG series safety switch with guard locking.
- Integrated control devices for machine operator functions.
- Electronic guard detection using RFID technology.
- F30 coded RFID actuator included.
- 9750 N maximum actuator holding force.
- 2 safety inputs IS1-IS2.
- 2 electronic safety outputs OS1-OS2.
- Dedicated signalling output for actuator inserted status.
- Dedicated signalling output for actuator locked status.
- Inputs for controlled electromagnet activation.
- Actuator programming and reset functionality.
- Safety outputs controlled according to monitored guard and lock conditions.
- Rotating head for flexible installation on machinery.
- Robust metal housing.
- Three M20 × 1.5 threaded cable entries.
Reliable Guard Locking for Industrial Machinery
Safety switches with guard locking are used where access to hazardous machine areas must remain prevented until dangerous movement or processes have stopped. The Pizzato NG series combines RFID-based actuator recognition with high-strength mechanical locking, enabling the safety control system to verify guard position and locking condition before machinery is permitted to operate.
The NG 2D6D313R-F30 also incorporates operator control devices within the switch assembly, providing a compact solution for guarded access points. Electronic safety and diagnostic outputs support integration with modern safety PLCs and controllers, while the robust locking mechanism provides dependable guard retention for automated industrial machinery.
Typical Applications
- Industrial machine guard doors and access points.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Conveyor and material handling equipment.
- CNC machines and machine-tool guarding.
- Automated assembly and manufacturing lines.
- Production cells requiring integrated operator controls.
- OEM machinery requiring RFID guard monitoring and locking.
