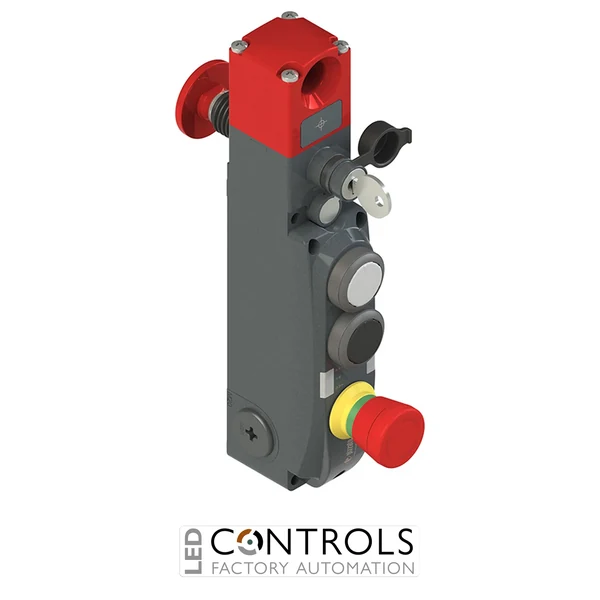

Why Choose the Pizzato NG 2D6D411D Safety Switch?
The Pizzato NG 2D6D411D is an advanced RFID safety locking switch with integrated control devices, designed for secure monitoring and locking of machine guards, safety doors and access points in industrial automation applications. As part of the Pizzato NG series safety switches, it combines RFID coded actuator technology, solenoid locking and integrated operator controls to provide reliable protection in hazardous machine environments.
This safety switch is designed for machines where hazardous conditions may continue after shutdown due to mechanical inertia, stored energy or other risks. The NG series provides non-contact actuator detection using RFID technology, helping prevent safety device manipulation while supporting high-level machine safety integration.
With a metal housing, rotating head, lock auxiliary release device, escape pushbutton and integrated control device configuration, the NG 2D6D411D provides a complete solution for demanding machine access protection systems.
Key Advantages
- RFID coded actuator technology provides secure non-contact safety monitoring.
- Integrated control devices combine machine operation controls with guard locking functionality.
- Solenoid locking function helps prevent access while hazardous conditions remain.
- High safety performance suitable for modern industrial automation systems.
- Metal housing construction provides durability in demanding environments.
- Flexible installation with rotating head and multiple conduit entries.
Key Features
- Pizzato NG series safety locking switch with RFID technology.
- Integrated three-device control cover configuration.
- One white pushbutton, one black pushbutton and one red emergency stop button.
- Emergency stop button with rotary release, 2NC contacts.
- Rotating head with lock auxiliary release device and escape pushbutton.
- Metal housing with three M20 × 1.5 threaded conduit entries.
- RFID digitally coded actuator detection.
- Compatible with safety relays and safety PLC systems.
Reliable RFID Safety Door Monitoring
The Pizzato NG series uses RFID technology to electronically identify the actuator without physical contact. This high coding approach provides millions of possible actuator combinations and helps prevent bypassing of safety devices according to machine safety requirements.
The locking mechanism maintains machine guard protection until safe conditions are achieved, while integrated control devices allow operators to interact with the machine directly through the safety switch assembly.
Typical Applications
- Industrial machine guard doors and protective access points.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Assembly and production equipment.
- Machines with hazardous movement after shutdown.
- OEM automation and machine safety systems.
