Why Choose the Pizzato NG 2D6D411F-F30 Safety Switch with Lock?

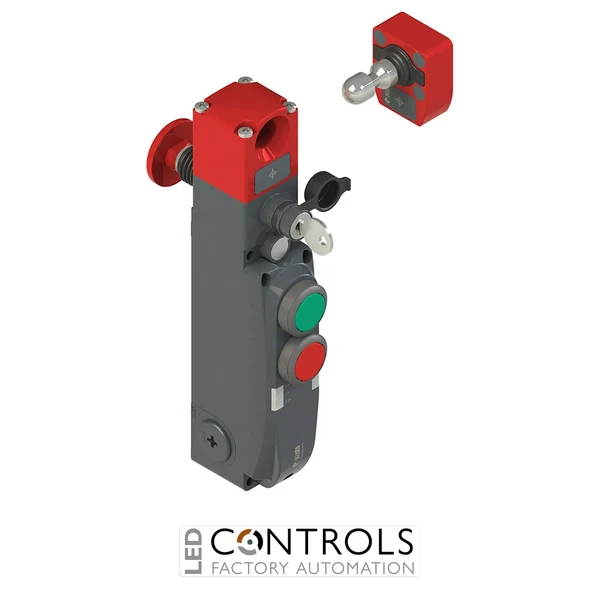

The Pizzato NG 2D6D411F-F30 is an advanced NG series safety switch with guard locking and integrated control devices, supplied complete with the VN NG-F30 coded actuator. Designed for industrial machine guarding, it combines electronic guard monitoring, solenoid-operated locking and local operator controls in one robust device for safety-critical doors, gates and access points.
This configuration incorporates two integrated control devices: a green pushbutton with 1NO+1NC contacts and a red pushbutton with 1NO+1NC contacts. The electronic safety interface provides two safe inputs IS1-IS2 and two safe outputs OS1-OS2, together with dedicated O3 and O4 signalling outputs for actuator-inserted and actuator-locked status.
The NG 2D6D411F-F30 uses Principle D operation, meaning the actuator is locked when the electromagnet is de-energised. Mode 1 operation activates the OS safety outputs when the actuator is inserted and locked. The switch also features an orientable head with key release and anti-panic escape release, a robust metal housing and three M20×1.5 threaded cable entries, while the supplied VN NG-F30 actuator provides low-level RFID coding.
Key Advantages
- Combines guard locking, electronic safety monitoring and operator controls in one assembly.
- Supplied complete with the VN NG-F30 low-level coded RFID actuator.
- High 9,750 N maximum locking force for demanding machine-guard applications.
- Principle D locking keeps the actuator locked when the electromagnet is de-energised.
- Mode 1 operation requires the actuator to be inserted and locked before the safety outputs become active.
- Integrated green and red pushbuttons provide convenient local machine-control functions.
- Dual safe inputs and dual OS safety outputs support integration with safety control systems.
- Orientable head with key release and anti-panic escape release provides additional access and emergency-release functionality.
Key Features
- Pizzato NG series safety switch with guard locking.
- Two integrated control devices on the cover.
- Position 1: green pushbutton, 1NO+1NC.
- Position 2: red pushbutton, 1NO+1NC.
- Supplied with VN NG-F30 low-level coded actuator.
- 9,750 N maximum locking force.
- 24 V DC nominal operating voltage.
- 2 safe inputs: IS1-IS2.
- 2 safe outputs: OS1-OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- Electromagnet activation through I4 or IE1-IE2 inputs.
- Dedicated I3 actuator programming / reset input.
- Mode 1 safety-output activation with the actuator inserted and locked.
- Metal housing with three M20×1.5 threaded cable entries.
- Orientable head with key release and anti-panic escape release.
- Six status LEDs for clear switch diagnostics.
Reliable Guard Locking and Operator Control for Industrial Machinery
Guard-locking safety switches are used where a protective door or gate must remain secured while hazardous machine conditions are present. The Pizzato NG series combines RFID actuator detection with solenoid-operated locking and electronic safety outputs, allowing a suitable safety control system to verify guard and locking status before hazardous machine operation is permitted.
The NG 2D6D411F-F30 also places green and red operator pushbuttons directly on the switch assembly, helping reduce the need for separate local control stations. Its high locking force, Mode 1 safety logic, dedicated status outputs and auxiliary and anti-panic release functions make it particularly suitable for automated machinery where reliable access control and convenient local operation are required.
Typical Applications
- Industrial machine guard doors and access gates.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Material handling and conveyor installations.
- Machine tools and manufacturing equipment.
- Guarded machinery requiring integrated local operator controls.
- Safety-critical access points requiring monitored guard locking.
