Why Choose the Pizzato NG 2D6D411H-F30 Safety Switch with Lock?
The Pizzato NG 2D6D411H-F30 is an advanced RFID safety switch with guard locking and an integrated control device designed for monitoring and securing movable guards on industrial machinery. Part of the Pizzato NG series, it combines electronically coded actuator detection, electromagnetic guard locking and a local operator pushbutton within a robust metal housing.
This configuration is supplied with the VN NG-F30 low-coding-level actuator and uses Principle D operation, meaning the actuator is locked when the electromagnet is de-energised. It provides two safety inputs and two safety outputs, together with dedicated signalling outputs for actuator-inserted and actuator-locked status, enabling integration with compatible safety PLCs, safety relays and machine control systems.

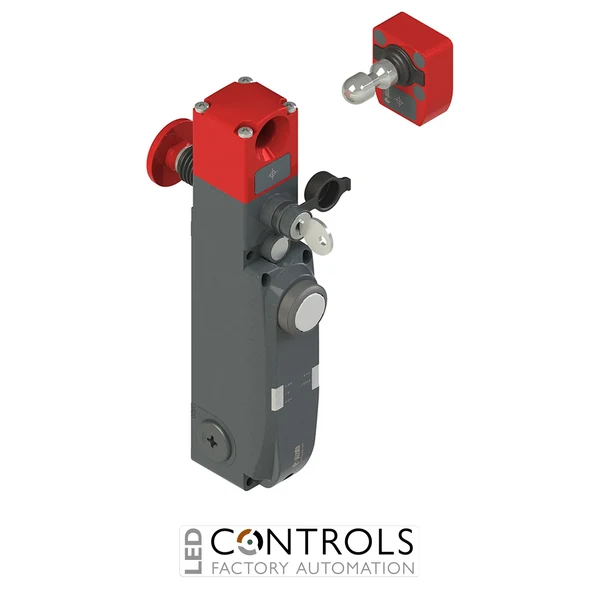

The NG 2D6D411H-F30 features a single white 1NO + 1NC pushbutton integrated into the cover, plus an orientable head with key-operated auxiliary release and escape pushbutton. With a maximum holding force of 9750 N, three M20 × 1.5 threaded cable entries and IP65 protection for this integrated-control configuration, it provides a comprehensive solution for demanding guarded machinery.
Key Advantages
- Combines RFID guard monitoring, electromagnetic locking and an integrated operator pushbutton in one device.
- Supplied complete with a VN NG-F30 low-coding-level actuator.
- Provides up to 9750 N maximum holding force for robust guard locking.
- Principle D operation keeps the actuator locked while the electromagnet is de-energised.
- Two safety inputs and two safety outputs support integration with modern machine safety systems.
- Dedicated signalling outputs indicate actuator inserted and actuator locked conditions.
- Key-operated auxiliary release and escape pushbutton provide additional release functionality.
Key Features
- Pizzato NG series RFID safety locking switch.
- Supplied with VN NG-F30 low-coding-level actuator.
- Single integrated white pushbutton with 1NO + 1NC contacts.
- 2 safety inputs IS1–IS2 and 2 safety outputs OS1–OS2.
- Signalling output O3 for actuator inserted.
- Signalling output O4 for actuator locked.
- Electromagnet activation through I4 or IE1–IE2.
- Actuator programming/reset input I3.
- Mode 1 safety-output activation, with outputs active when the actuator is inserted and locked.
- Orientable head with key-operated auxiliary release and escape pushbutton.
- Metal housing with three M20 × 1.5 threaded cable entries.
- Electrical connection directly through the cable entries, without a pre-installed connector.
Reliable Guard Monitoring and Locking for Industrial Machinery
The Pizzato NG series combines RFID-based actuator detection with electromagnetic guard locking to help machine safety systems control access to hazardous areas. On the NG 2D6D411H-F30, Mode 1 operation means the safety outputs become active when the actuator is both inserted and locked, enabling the connected safety controller to evaluate the protected condition of the movable guard.
The integrated white pushbutton provides a convenient local operator control, while the key-operated auxiliary release and escape pushbutton add practical release functions for machine access and safety procedures. The combination of electronic safety channels, diagnostic signalling, robust metal construction and high holding force makes this configuration well suited to modern automated machinery.
Typical Applications
- Guard doors on automated production machinery.
- Robotic cells and automated assembly systems.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Machine tools and manufacturing equipment.
- Guarded access points requiring an integrated operator pushbutton and escape release.
