Why Choose the Pizzato NG 2D6D413C Safety Switch?

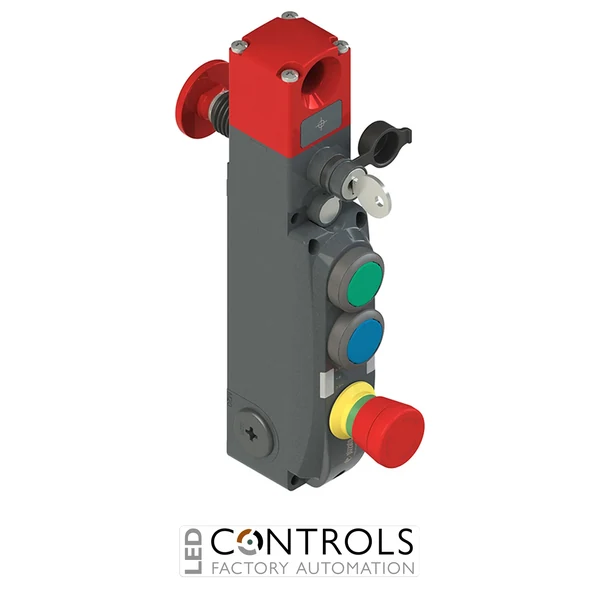

The Pizzato NG 2D6D413C is an advanced RFID safety switch with guard locking and three integrated control devices, designed for secure monitoring and locking of movable guards, access doors and protective panels on industrial machinery. Part of the Pizzato NG series, it combines electronically coded actuator detection, high-strength mechanical locking, electronic safety outputs and local operator controls within a robust metal housing.
This configuration incorporates one green pushbutton with 1NO contact in position 1, one blue pushbutton with 1NO contact in position 2 and a red emergency pushbutton with turn-to-release action and 2NC contacts in position 3. Combining these devices with the guard-locking switch provides machine builders with a compact operator interface directly at the protected access point.
The NG 2D6D413C uses the D working method, keeping the actuator locked while the electromagnet is de-energised, and the NG locking mechanism provides a substantial 9750 N locking force. The rotating head incorporates a key-operated auxiliary release and escape pushbutton. This base configuration is supplied without an actuator, allowing a compatible NG series RFID actuator to be selected separately according to the required coding level.
Key Advantages
- Combines RFID guard monitoring, mechanical guard locking and three integrated operator controls in one assembly.
- Integrated green 1NO and blue 1NO pushbuttons provide convenient local machine-control functions.
- Integrated red emergency pushbutton with turn-to-release action and 2NC contacts.
- Provides a substantial 9750 N locking force for demanding machine guarding applications.
- D working method keeps the actuator locked while the electromagnet is de-energised.
- Electronic OSSD safety outputs support integration with modern safety PLCs and controllers.
- Dedicated outputs provide actuator inserted and actuator locked status information.
- Actuator supplied separately, allowing selection of the appropriate compatible NG series RFID coding level.
Key Features
- Pizzato NG series RFID safety switch with guard locking.
- Three integrated control devices.
- Position 1: green pushbutton, 1NO.
- Position 2: blue pushbutton, 1NO.
- Position 3: red emergency pushbutton, turn to release, 2NC.
- 9750 N locking force.
- 2 safety inputs IS1-IS2.
- 2 electronic safety outputs OS1-OS2.
- O3 signalling output for actuator inserted status.
- O4 signalling output for actuator locked status.
- I4 or IE1-IE2 inputs for electromagnet activation.
- I3 input for actuator programming and reset.
- Mode 1: safety outputs active with actuator inserted and locked.
- Rotating head with key-operated auxiliary release and escape pushbutton.
- Metal housing with three M20 × 1.5 threaded conduit entries.
- IP65 protection according to EN 60529 for the integrated-control configuration.
- Standard configuration supplied without connector.
Integrated Guard Locking and Operator Control
Safety switches with guard locking are used where access to hazardous machine areas must remain prevented until dangerous movement or processes have stopped. The Pizzato NG series combines RFID actuator recognition with high-strength mechanical locking, allowing the safety control system to monitor both guard position and locking status before hazardous machine operation is permitted.
The NG 2D6D413C further combines the guard-locking function with green and blue operator pushbuttons and a red emergency pushbutton. This integrated arrangement reduces the need for separate control stations around the guard, while dual electronic safety outputs and dedicated status signalling support connection to modern safety PLCs, controllers and automated machine systems.
Typical Applications
- Industrial machine guard doors and access points.
- Robotic cells and automated production systems.
- Guarded areas requiring emergency escape functionality.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- CNC machines and machine-tool guarding.
- Automated assembly and manufacturing lines.
- OEM machinery requiring integrated guard locking and local operator controls.
