Why Choose the Pizzato NG 2D6D413G Safety Switch with Lock?

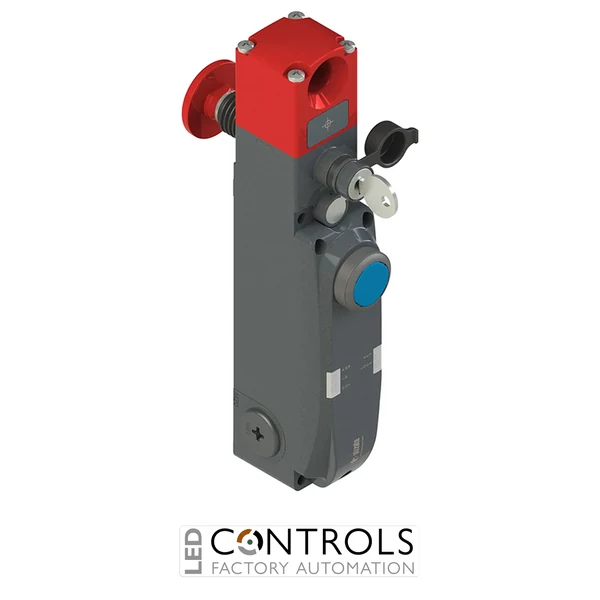

The Pizzato NG 2D6D413G is an advanced NG series safety switch with guard locking and an integrated control device designed for monitoring and securing movable guards on industrial machinery. It combines RFID-based actuator detection, electromagnetic guard locking and a local operator control in a robust metal housing for demanding machine safety applications.
This configuration features a blue pushbutton with 1NO + 1NC contacts integrated into the cover. It uses Principle D operation, meaning the actuator is locked when the solenoid is de-energised, and Mode 1 safety-output activation, where the safety outputs become active when the actuator is inserted and locked.
The NG 2D6D413G incorporates a rotating head with key-operated auxiliary release and an escape pushbutton. Two safety inputs, two safety outputs and dedicated actuator-status signalling enable integration with compatible safety PLCs and safety relays, while the base NG 2D6D413G configuration is supplied without an actuator so the appropriate NG-series coded actuator can be selected separately.
Key Advantages
- Combines RFID guard monitoring, electromagnetic guard locking and local operator control in one device.
- Integrated blue pushbutton with 1NO + 1NC contacts.
- Principle D operation keeps the actuator locked when the solenoid is de-energised.
- Mode 1 operation links safety-output activation to the actuator being inserted and locked.
- Provides two safety inputs and two safety outputs for integration into electronic machine safety systems.
- Dedicated outputs indicate actuator-inserted and actuator-locked conditions.
- Rotating head includes both key-operated auxiliary release and escape release functionality.
- Robust metal housing is designed for demanding industrial environments.
Key Features
- Pizzato NG series RFID safety locking switch.
- One integrated blue pushbutton, 1NO + 1NC.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- Signalling output O3 for actuator inserted.
- Signalling output O4 for actuator locked.
- Inputs I4 or IE1–IE2 for solenoid activation.
- Input I3 for actuator programming/reset.
- Mode 1 safety-output activation.
- Principle D locking operation.
- Rotating head with lock auxiliary release and escape pushbutton.
- Metal housing with three M20 × 1.5 threaded conduit entries.
- IP65 protection for the integrated-control configuration.
- Base NG 2D6D413G configuration supplied without actuator.
Reliable Guard Monitoring and Locking for Industrial Machinery
The Pizzato NG series combines electronically coded RFID guard detection with electromagnetic locking to help machine safety systems control access to hazardous areas. With Mode 1 operation, the OS1–OS2 safety outputs are active when the actuator is inserted and locked, allowing the connected safety controller to evaluate the protected condition of the movable guard.
The integrated blue pushbutton provides convenient local operator control, while the rotating head incorporates both a key-operated auxiliary release and an escape pushbutton. Together with electronic status signalling and robust metal construction, these features make the NG 2D6D413G suitable for sophisticated automated machinery and guarded production systems.
Typical Applications
- Guard doors on automated production machinery.
- Robotic cells and automated assembly systems.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Machine tools and manufacturing equipment.
- Guarded access points requiring a local blue operator pushbutton.
- Machinery requiring auxiliary and escape release functionality.
