Why Choose the Pizzato NG 2D6D414L-F31 Safety Switch?

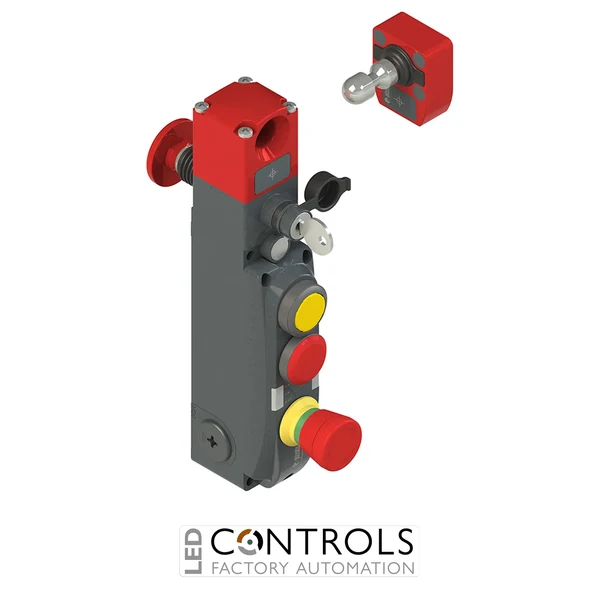

The Pizzato NG 2D6D414L-F31 is an advanced RFID safety switch with guard locking, integrated control devices and supplied actuator, designed for secure monitoring and locking of movable guards, access doors and protective panels on industrial machinery. Part of the Pizzato NG series, it combines electronically coded actuator recognition, high-strength mechanical locking, electronic safety outputs and local operator controls within a robust metal assembly.
The four-position integrated control-device configuration allows multiple operator functions to be located directly at the guarded access point, helping reduce the need for separate control stations and associated installation hardware. Electronic safety inputs and outputs provide straightforward integration with safety PLCs and controllers, while dedicated diagnostic functions support guard and locking status monitoring.
The NG 2D6D414L-F31 uses the D working method, with the actuator locked while the electromagnet is de-energised. It is supplied complete with the VN NG-F31 high coding level RFID actuator, providing individually coded actuator recognition for enhanced resistance to guard-system bypassing. The NG locking mechanism provides a maximum actuator holding force of 9750 N, making this configuration suitable for demanding industrial machine safety applications.
Key Advantages
- Combines RFID guard monitoring, mechanical guard locking and integrated operator controls in one assembly.
- Supplied with VN NG-F31 high coding level actuator for enhanced resistance to guard-system bypassing.
- Four integrated control-device positions provide a compact local machine interface.
- Maximum actuator holding force of 9750 N for demanding machine guarding applications.
- D working method keeps the actuator locked while the electromagnet is de-energised.
- Electronic safety outputs support integration with modern safety PLCs and controllers.
- RFID technology provides reliable electronic actuator recognition without conventional mechanical position sensing.
- Robust metal construction is designed for industrial machinery and automated production equipment.
Key Features
- Pizzato NG series RFID safety switch with guard locking.
- Four integrated control-device positions.
- Electronic actuator recognition using RFID technology.
- VN NG-F31 high coding level actuator included.
- 9750 N maximum actuator holding force.
- 2 safety inputs IS1-IS2.
- 2 electronic safety outputs OS1-OS2.
- Dedicated signalling for actuator and locking conditions.
- Inputs for controlled electromagnet activation.
- Actuator programming and reset functionality.
- D working method with actuator locked when the electromagnet is de-energised.
- Metal housing designed for demanding industrial installations.
- Three M20 × 1.5 threaded cable entries.
- LED status indication supports commissioning and diagnostics.
- NG series safety architecture supports applications up to PL e and SIL 3 when correctly integrated.
Integrated Guard Locking and Operator Control
Safety switches with guard locking are used where access to hazardous machinery must remain prevented until dangerous movement or processes have stopped. The Pizzato NG series combines digitally coded RFID actuator recognition with high-strength mechanical locking, enabling the machine safety system to monitor the guard and locking conditions before hazardous operation is permitted.
The NG 2D6D414L-F31 also provides four integrated control-device positions, allowing several operator functions to be incorporated directly into the guard-locking assembly. Its electronic safety architecture, diagnostic signalling and high coding level F31 actuator make it particularly suitable for modern automated machinery requiring compact operator controls and dependable functional safety integration.
Typical Applications
- Industrial machine guard doors and access points.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Conveyor and material handling equipment.
- CNC machines and machine-tool guarding.
- Automated assembly and manufacturing lines.
- Production cells requiring multiple local operator controls.
- OEM machinery requiring high-coded RFID guard locking.
