Why Choose the Pizzato NG 2D6D414S-F31 Safety Switch?

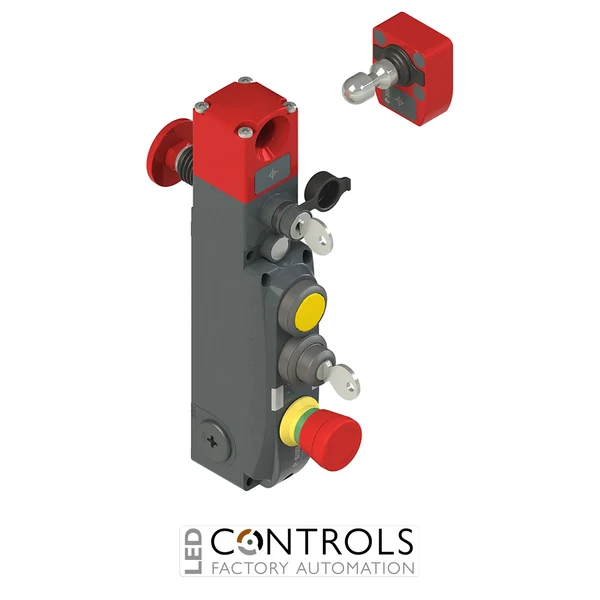

The Pizzato NG 2D6D414S-F31 is an advanced RFID safety switch with guard locking, integrated control devices and supplied actuator, designed for monitoring and locking movable guards, access doors and protective panels on industrial machinery. Part of the Pizzato NG series, it combines electronic actuator recognition, high-strength mechanical guard locking and local operator controls within a robust industrial assembly.
The four-position integrated control-device configuration allows multiple operator functions to be located directly at the guarded access point. This helps machine builders create a compact guard-control station while reducing the requirement for separate operator-control enclosures, associated wiring and additional mounting hardware.
The NG 2D6D414S-F31 uses the D working method, meaning the actuator remains locked while the electromagnet is de-energised. It is supplied complete with the VN NG-F31 high coding level RFID actuator, providing individually coded actuator recognition for enhanced resistance to guard-system bypassing. The NG series locking mechanism provides a maximum actuator holding force of 9750 N, making the switch suitable for demanding industrial machine safety applications.
Key Advantages
- Combines RFID guard monitoring, mechanical guard locking and integrated operator controls in one assembly.
- Supplied with VN NG-F31 high coding level actuator for enhanced resistance to guard-system bypassing.
- Four integrated control-device positions provide a compact local machine interface.
- Maximum actuator holding force of 9750 N for demanding machine guarding applications.
- D working method keeps the actuator locked while the electromagnet is de-energised.
- Electronic safety architecture supports integration with modern safety PLCs and controllers.
- RFID technology provides dependable non-contact electronic actuator recognition.
- Robust metal construction is designed for industrial machinery and automated production equipment.
Key Features
- Pizzato NG series RFID safety switch with guard locking.
- Four integrated control-device positions.
- Electronic guard recognition using RFID technology.
- VN NG-F31 high coding level actuator included.
- 9750 N maximum actuator holding force.
- Electronic safety inputs and safety outputs for functional safety integration.
- Dedicated diagnostic signalling for guard and locking conditions.
- Controlled electromagnet activation for guard release.
- Actuator programming and reset functionality.
- D working method with actuator locked when the electromagnet is de-energised.
- Metal housing for demanding industrial installations.
- Three M20 × 1.5 threaded cable entries.
- LED status indication supports commissioning and machine diagnostics.
- NG series architecture supports high-level functional safety applications.
Integrated Guard Locking and Operator Control
Safety switches with guard locking are used where access to hazardous machinery must remain prevented until dangerous movement or processes have stopped. The Pizzato NG series combines digitally coded RFID actuator recognition with high-strength mechanical locking, enabling the machine safety system to monitor guard and locking conditions before hazardous machine operation is permitted.
The NG 2D6D414S-F31 also provides four integrated control-device positions, allowing several operator functions to be incorporated directly into the guard-locking assembly. Its electronic safety architecture, diagnostic capabilities and high coding level F31 actuator make it particularly suitable for modern automated machinery requiring compact local controls and dependable functional safety integration.
Typical Applications
- Industrial machine guard doors and access points.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Conveyor and material handling equipment.
- CNC machines and machine-tool guarding.
- Automated assembly and manufacturing lines.
- Production cells requiring multiple local operator controls.
- OEM machinery requiring high-coded RFID guard locking.
