Why Choose the Pizzato NG 2D6D415C-F31 Safety Switch with Lock?

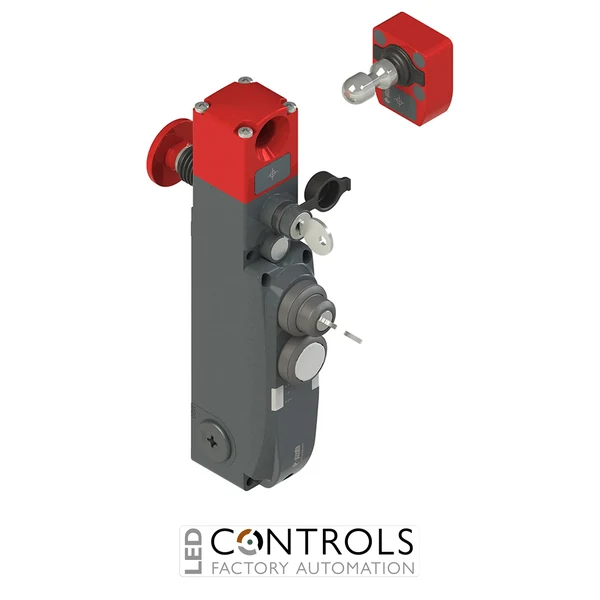

The Pizzato NG 2D6D415C-F31 is an advanced NG series safety switch with guard locking and integrated control devices, supplied complete with the VN NG-F31 high-level coded actuator. Designed for industrial machine guarding, it combines RFID actuator detection, electronic safety monitoring and robust guard locking in a single assembly for doors, gates and other protected access points.
The NG 2D6D415C-F31 uses Principle D operation, with the actuator locked when the electromagnet is de-energised. Its Mode 1 safety-output configuration activates the OS safety outputs when the actuator is both inserted and locked, providing clear safety logic for integration with compatible machine safety controllers.
A robust metal housing with three M20×1.5 threaded cable entries is combined with an orientable head incorporating key-operated auxiliary release and an anti-panic escape pushbutton. With a maximum locking force of 9,750 N, integrated control-device capability and dedicated signalling outputs for actuator and lock status, this configuration provides a comprehensive solution for demanding automated machinery.
Key Advantages
- Combines guard locking, RFID safety monitoring and integrated control devices in one assembly.
- Supplied complete with the VN NG-F31 high-level coded actuator.
- 9,750 N maximum locking force for demanding machine-guard applications.
- Principle D operation keeps the actuator locked when the electromagnet is de-energised.
- Mode 1 logic activates safety outputs only when the actuator is inserted and locked.
- Dual safety inputs and dual safety outputs support modern safety-control architectures.
- Separate signalling outputs provide clear actuator-inserted and actuator-locked status.
- Auxiliary and emergency escape-release functions support practical machine access and maintenance.
Key Features
- Pizzato NG series electronic safety switch with guard locking.
- Integrated control-device configuration.
- Supplied with VN NG-F31 actuator.
- High-level actuator coding for enhanced protection against substitution.
- Principle D: actuator locked with electromagnet de-energised.
- Mode 1 safety-output activation.
- 2 safety inputs: IS1-IS2.
- 2 safety outputs: OS1-OS2.
- O3 signalling output indicates actuator inserted.
- O4 signalling output indicates actuator locked.
- I4 or IE1-IE2 inputs for electromagnet activation.
- I3 input for actuator programming / reset.
- 9,750 N locking force.
- Metal housing for industrial durability.
- Three M20×1.5 threaded cable entries.
- Orientable head with key-operated auxiliary release.
- Integrated anti-panic escape pushbutton.
- IP65 protection according to EN 60529.
- Status indication for convenient machine diagnostics.
Reliable RFID Guard Locking for Industrial Machinery
The Pizzato NG 2D6D415C-F31 is designed for machinery where a protective guard must remain securely locked until safe access conditions have been established. Its 9,750 N locking force, Principle D operation and Mode 1 safety logic provide a robust combination for monitoring both actuator presence and confirmed locking before the safety outputs become active.
Dedicated O3 and O4 signalling outputs allow the machine-control system to distinguish between an inserted actuator and a fully locked guard. Together with the high-level coded VN NG-F31 actuator, auxiliary release, anti-panic escape function and integrated controls, this makes the switch particularly suitable for sophisticated automated equipment and guarded production cells.
Typical Applications
- Industrial machine guard doors and safety gates.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Material handling and conveyor equipment.
- Machine tools and manufacturing centres.
- Guarded machinery requiring integrated local controls.
- Safety-critical access points requiring high-force monitored guard locking.
