Why Choose the Pizzato NG 2D7D312V-F31 Safety Switch with Lock?

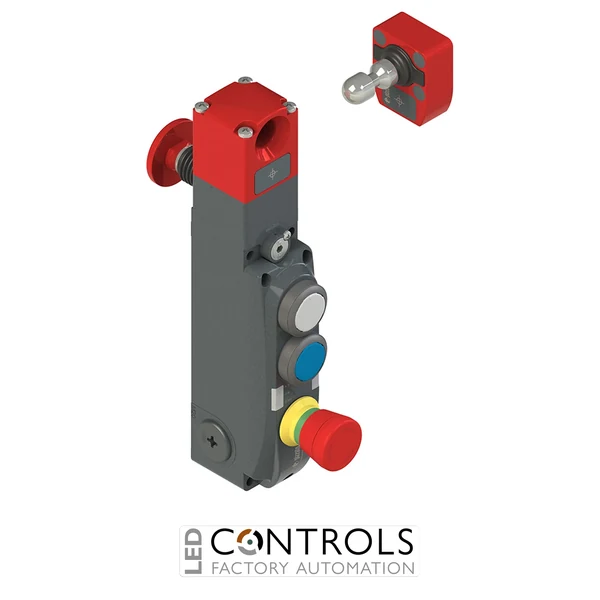

The Pizzato NG 2D7D312V-F31 is an advanced NG series safety switch with guard locking, RFID technology and integrated control devices, designed for monitoring and controlling access through movable guards and safety doors on industrial machinery. It combines electronic guard monitoring, controlled locking and local operator functions in a robust machine-mounted safety device.
As part of the Pizzato NG series, this switch uses coded RFID actuator detection to monitor the associated guard without relying solely on conventional mechanical position sensing. Electronic safety functionality enables integration with suitable safety controllers and machine-control systems, while guard locking helps prevent access to hazardous areas until the safety system permits release.
The NG 2D7D312V-F31 is supplied complete with its F31 actuator, providing a high coding level for enhanced protection against inappropriate actuator substitution. Its integrated control-device configuration makes the unit particularly suitable for machinery where safety monitoring, guard locking and operator interaction need to be combined at the guarded access point.
Key Advantages
- Combines guard monitoring, guard locking and integrated control devices in one assembly.
- RFID actuator detection provides coded electronic monitoring of the machine guard.
- F31 actuator configuration provides a high coding level for enhanced anti-tampering protection.
- Electronic safety architecture facilitates integration with modern machine safety controllers.
- Guard locking helps control access while hazardous machine conditions remain.
- Integrated controls can reduce the requirement for separate operator devices at guarded access points.
- Supplied with actuator for a complete switch-and-actuator installation.
Key Features
- Pizzato NG series safety switch with guard lock.
- RFID coded actuator technology.
- Integrated control devices for machine-side operator functions.
- Electronic monitoring of guard position and locking condition.
- Electronic safety functionality for safety-system integration.
- Status monitoring for machine-control and diagnostic purposes.
- Guard-locking mechanism for controlled access to hazardous areas.
- Designed for demanding industrial machine guarding applications.
- Supplied complete with F31 high-level coded actuator.
Reliable RFID Guard Locking for Industrial Machinery
Guard-locking safety switches are particularly valuable on machinery where hazardous movement, pressure, temperature or other dangerous conditions can remain after a stop command. The Pizzato NG series combines RFID actuator detection with electronically monitored guard locking, allowing access to be managed as part of the machine's safety-related control architecture.
The coded F31 actuator provides a high coding level and is associated with the safety switch for dependable guard identification. Integrated control devices further simplify guarded machine stations by combining operator functions with safety monitoring and locking in a single assembly, making the NG series well suited to sophisticated automated machinery.
Typical Applications
- Industrial machine safety doors and movable guards.
- Robotic cells and automated production areas.
- Packaging and processing machinery.
- Machine tools and guarded manufacturing equipment.
- Automated assembly and production systems.
- Conveyor and material handling machinery.
- Machines with residual hazardous conditions after stopping.
- OEM machinery and industrial automation systems.
