Why Choose the Pizzato NG 2D7D411A-LP60 Safety Switch?

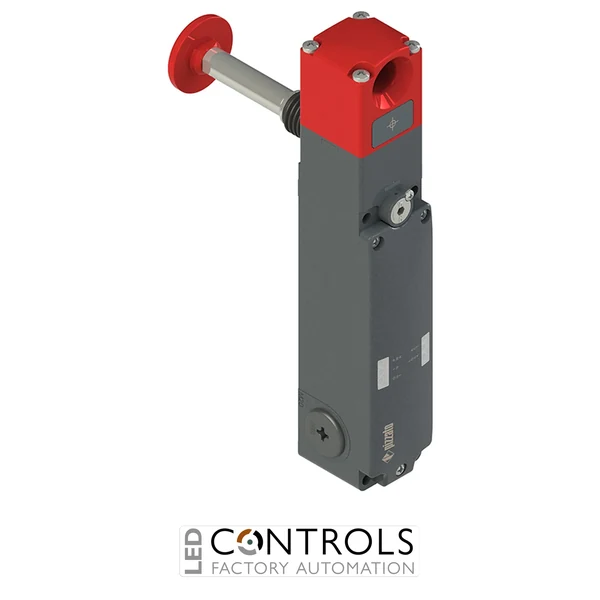

The Pizzato NG 2D7D411A-LP60 is a heavy-duty RFID safety switch with guard locking, designed for monitoring and securing movable guards on industrial machinery and automated equipment. Part of the advanced Pizzato NG series, it combines electronic guard monitoring, powerful mechanical locking and semiconductor safety outputs in a robust metal housing for demanding machine-safety applications.
The NG 2D7D411A-LP60 features two safety inputs and two semiconductor safety outputs, together with dedicated signalling outputs for actuator-inserted and actuator-locked status. Its Mode 1 safety-output configuration activates the safety outputs only when the actuator is both inserted and locked, allowing a suitable safety-control system to verify guard closure and locking before hazardous machine functions are enabled.
This model uses the D working method, meaning the actuator remains locked while the solenoid is de-energised. The NG series provides a substantial maximum actuator holding force of 9750 N, while the rotating head incorporates an escape pushbutton for release from inside a guarded area. With IP67 and IP69K environmental protection, the NG 2D7D411A-LP60 is engineered for dependable operation in demanding industrial environments.
Key Advantages
- Heavy-duty RFID safety switch with monitored guard locking for industrial machinery.
- Maximum actuator holding force of 9750 N for demanding guard-locking applications.
- D working method keeps the actuator locked when the solenoid is de-energised.
- Mode 1 safety outputs activate when the actuator is inserted and locked.
- Two safety inputs and two semiconductor safety outputs simplify integration with safety-control systems.
- Separate signalling outputs provide actuator-inserted and actuator-locked status.
- Rotating head with escape pushbutton supports personnel release from inside guarded areas.
- IP67 and IP69K protection supports use in demanding industrial environments.
Key Features
- Pizzato NG series safety switch with guard locking.
- NG 2D7D411A-LP60 product configuration.
- Electronic RFID actuator detection technology.
- 9750 N maximum actuator holding force.
- D working method with actuator locked by a de-energised solenoid.
- Two safety inputs IS1 and IS2.
- Two semiconductor safety outputs OS1 and OS2.
- Signalling output O3 for actuator-inserted status.
- Signalling output O4 for actuator-locked status.
- I4 or IE1-IE2 inputs for solenoid activation.
- I3 input for actuator programming / reset.
- Mode 1 safety-output activation with actuator inserted and locked.
- Rotating head with integrated escape pushbutton.
- Metal housing with three threaded M20 × 1.5 conduit entries.
- IP67 and IP69K environmental protection.
Reliable Guard Control for Industrial Machinery
Safety locking switches such as the Pizzato NG 2D7D411A-LP60 are designed for machinery where access to a hazardous area must remain prevented until dangerous movement or other hazardous conditions have ceased. RFID technology provides electronic guard monitoring, while the high-strength mechanical locking system prevents the actuator from being withdrawn while the guard must remain secured.
Mode 1 operation makes this configuration particularly suitable where both guard closure and successful locking need to be confirmed before hazardous machine functions can operate. Dedicated status outputs provide additional information to the machine-control system, while the escape pushbutton provides a means of releasing the locking mechanism from within the protected area.
Typical Applications
- Industrial machine guard doors and access gates.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated assembly and production lines.
- Conveyor and material-handling equipment.
- Machine tools with rotating or high-inertia components.
- Guarded areas requiring an internal escape-release function.
- OEM machinery and integrated industrial safety systems.
