Why Choose the Pizzato NG 2D7D411Z-F31 Safety Switch with Lock?

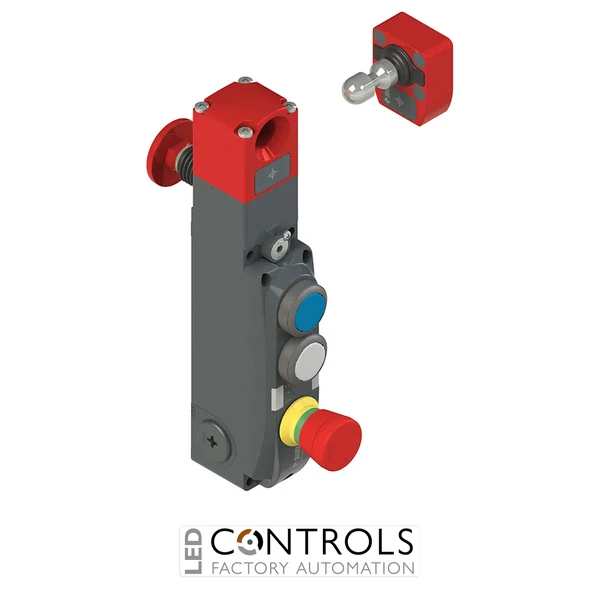

The Pizzato NG 2D7D411Z-F31 is an NG series safety switch with guard locking and integrated control devices, designed for monitoring movable guards and controlling access to hazardous areas on industrial machinery. It combines the NG platform's RFID coded actuator technology, electronic safety monitoring and guard locking with local control functionality in a single industrial assembly.
The NG series is engineered for applications where access must remain controlled while hazardous machine conditions are present. Electronic safety outputs allow the guard condition to be integrated into a suitable safety-related control system, while dedicated status signalling provides useful information for machine diagnostics and automation control.
This model is supplied complete with the VN NG-F31 high-coding-level actuator. The individually coded F31 actuator provides enhanced protection against actuator substitution, making the NG 2D7D411Z-F31 suitable for machinery where a high coding level is required as part of the guard-interlocking design.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated control devices in one assembly.
- NG series locking mechanism provides up to 9750 N actuator holding force.
- VN NG-F31 high-coding-level actuator provides enhanced protection against actuator substitution.
- Electronic safety architecture supports integration with compatible safety controllers and safety PLCs.
- Separate actuator and lock-status signalling assists machine diagnostics.
- Integrated control devices place operator functions directly at the guarded access point.
- Robust NG series construction is designed for demanding industrial machine-safety applications.
- Supplied complete with the corresponding F31 actuator.
Key Features
- Pizzato NG series safety switch with guard lock.
- Integrated control devices for local machine-operation functions.
- Non-contact RFID coded actuator detection.
- Electronic safety monitoring of guard status.
- Electronic safety outputs for safety-system integration.
- Dedicated signalling of actuator and locking status.
- Guard-locking function for controlled access to hazardous machine areas.
- NG series metal housing construction.
- Three threaded M20 × 1.5 conduit entries typical of the NG metal housing configuration.
- Supplied with VN NG-F31 high-coding-level actuator.
Integrated RFID Guard Locking for Industrial Machinery
Guard-locking safety switches are used where opening a machine guard before hazardous conditions have ceased could expose personnel to risk. The Pizzato NG platform combines coded electronic actuator detection with guard locking and electronic safety monitoring, allowing the guard condition to form part of the machine's safety-related control architecture.
The NG 2D7D411Z-F31 also incorporates control devices directly into the switch assembly, helping machine builders consolidate guard-safety and local operator functions at the access point. Its supplied F31 actuator uses a high coding level, providing an individually coded interface for applications where enhanced protection against foreseeable manipulation is required.
Typical Applications
- Industrial machine safety doors and movable guards.
- Robotic cells and automated production areas.
- Packaging and processing machinery.
- Machine tools with hazardous residual movement.
- Automated assembly and manufacturing equipment.
- Conveyor and material handling systems.
- Guarded production cells requiring local operator controls.
- OEM machinery requiring coded guard locking and safety monitoring.
