Why Choose the Pizzato NG 2D7D412L-F31 Safety Switch with Lock?

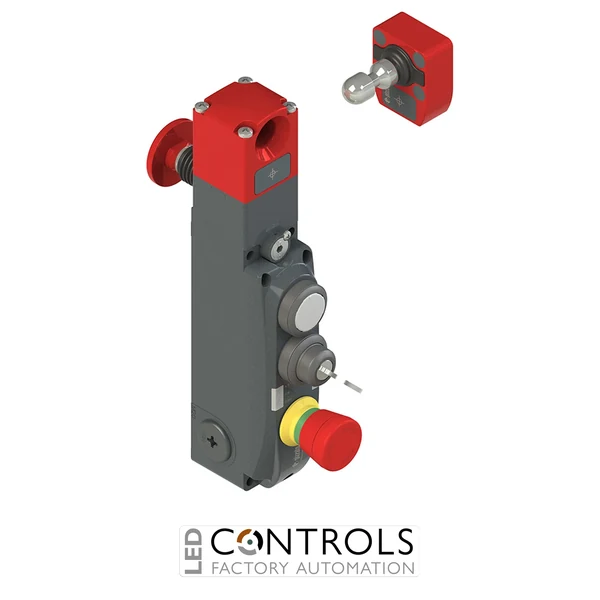

The Pizzato NG 2D7D412L-F31 is an industrial NG series safety switch with guard locking and integrated control devices designed for monitoring movable guards and controlling access to hazardous areas of machinery. It combines coded electronic actuator detection, robust guard locking, electronic safety functions and local operator controls in a single integrated safety device.
As part of the Pizzato NG series, the NG 2D7D412L-F31 is intended for applications where a protective guard must remain closed until the machine has reached a safe condition. The NG platform uses contactless RFID actuator detection and electronically monitored locking, supporting reliable integration with safety controllers and modern industrial automation systems.
The NG 2D7D412L-F31 is supplied with the VN NG-F31 high-level coded actuator. This individually coded actuator provides a high coding level for enhanced protection against substitution, while the integrated control-device configuration allows machine builders to combine guard safety and local operator functions at the same protected access point.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated operator controls.
- Contactless coded actuator detection supports dependable guard-position monitoring.
- Supplied with a VN NG-F31 high-level coded actuator.
- High 9750 N actuator holding force provides robust guard retention.
- NG series architecture supports safety applications up to SIL 3 and PL e.
- Integrated electronic safety functions simplify connection to modern safety controllers.
- Metal construction is suitable for demanding industrial machinery.
- Integrated controls can reduce the number of separate operator devices required around the guard.
Key Features
- Pizzato NG series safety switch with lock.
- Contactless RFID actuator detection.
- High-level digitally coded actuator system.
- Supplied with VN NG-F31 actuator.
- Integrated guard-locking mechanism.
- 9750 N actuator holding force.
- Integrated control devices for local machine operation.
- Electronic safety and status-monitoring functionality.
- Robust metal housing for industrial installations.
- Designed for movable guards, access doors and protected machine areas.
Reliable Guard Locking for Industrial Machinery
Guard-locking safety switches are used where personnel must be prevented from opening a protective guard before hazardous machine movement or processes have reached a safe condition. The Pizzato NG platform combines contactless RFID guard detection with a mechanically retained actuator, enabling the machine safety system to supervise both guard position and locking status.
The high-level coded VN NG-F31 actuator enhances resistance to straightforward actuator substitution, while the strong locking mechanism provides dependable guard retention. Combined with integrated operator controls and electronic safety functionality, the NG 2D7D412L-F31 provides a comprehensive access-protection solution for modern automated machinery.
Typical Applications
- Machine guard doors and safety access gates.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Machine tools and machining centres.
- Conveyor and material handling installations.
- Automated assembly and production equipment.
- Guarded machinery requiring integrated local operator controls.
