Why Choose the Pizzato NG 2D7D415S Safety Switch with Lock?

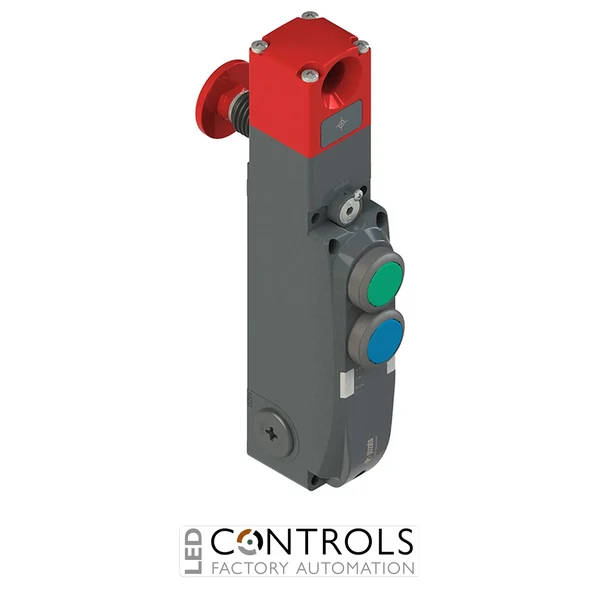

The Pizzato NG 2D7D415S is an advanced RFID safety switch with guard locking and integrated control devices designed for monitoring protected access points on industrial machinery. Part of the Pizzato NG series, it combines coded actuator detection, solenoid-operated guard locking and local machine-control functionality within a robust metal housing.
The NG 2D7D415S provides two safety inputs IS1-IS2 and two safety outputs OS1-OS2, together with separate signalling outputs for actuator-inserted and actuator-locked status. This electronic architecture enables integration with suitable machine safety controllers while providing clear information about the state of the guarded access point.
This model uses the D working method, meaning the actuator is locked when the solenoid is de-energised. It features a rotating head with an escape release pushbutton and is designed around the NG series high-force locking system, which provides a maximum holding force of 9750 N for demanding industrial guard-locking applications.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated control devices in one assembly.
- 9750 N maximum holding force for secure locking of industrial machine guards.
- De-energised-to-lock D working method keeps the actuator locked when the solenoid is not energised.
- Two safety inputs and two safety outputs support integration with suitable safety control systems.
- Dedicated signalling outputs provide actuator-inserted and actuator-locked status.
- Rotating head with escape release pushbutton supports applications where personnel may enter guarded areas.
- Robust metal enclosure with three M20 × 1.5 threaded conduit entries.
Key Features
- Pizzato NG series safety switch with guard lock and integrated control devices.
- Coded RFID actuator detection technology.
- 9750 N maximum actuator holding force.
- IP65 protection according to EN 60529.
- 2 safety inputs IS1-IS2.
- 2 safety outputs OS1-OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- I4 or IE1-IE2 inputs for solenoid activation.
- I3 input for actuator programming and reset.
- Mode 1 safety-output activation with outputs active when the actuator is inserted and locked.
- Rotating head with escape release pushbutton.
- Metal housing with three threaded M20 × 1.5 conduit entries.
- Connection arrangement without connector.
Reliable Guard Locking for Industrial Machinery
Pizzato NG series safety switches combine coded RFID actuator detection with controlled guard locking to help prevent access to hazardous machine areas while dangerous conditions remain present. Electronic safety outputs communicate the safe status of the guard to compatible machine safety systems, while dedicated signalling outputs provide additional information about actuator insertion and locking.
The NG 2D7D415S also incorporates control devices directly into the switch assembly, providing machine builders with a compact solution for combining access monitoring, locking and local operator functionality. The escape release arrangement is particularly useful for guarded areas where personnel may enter and require a means of releasing the guard from inside.
Typical Applications
- Industrial machine safety doors and movable guards.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Material handling and conveyor installations.
- Assembly and production equipment.
- Machine tools and protected manufacturing cells.
- Guarded machinery requiring integrated local operator controls.
