Why Choose the Pizzato NG 2D7D416B-F31 Safety Switch?
The Pizzato NG 2D7D416B-F31 is an advanced RFID safety switch with guard locking and integrated control devices designed for secure monitoring and locking of movable guards on industrial machinery. Part of the Pizzato NG series, it combines coded actuator detection, electronic safety inputs and outputs, guard-lock monitoring and local operator controls within a robust metal housing.
This model uses D working method, keeping the actuator locked while the solenoid is de-energised. Its two OS1-OS2 safety outputs use activation mode 1 and become active when the actuator is inserted and locked. Dedicated O3 and O4 signalling outputs provide separate information for actuator-inserted and actuator-locked conditions, supporting comprehensive machine safety monitoring.

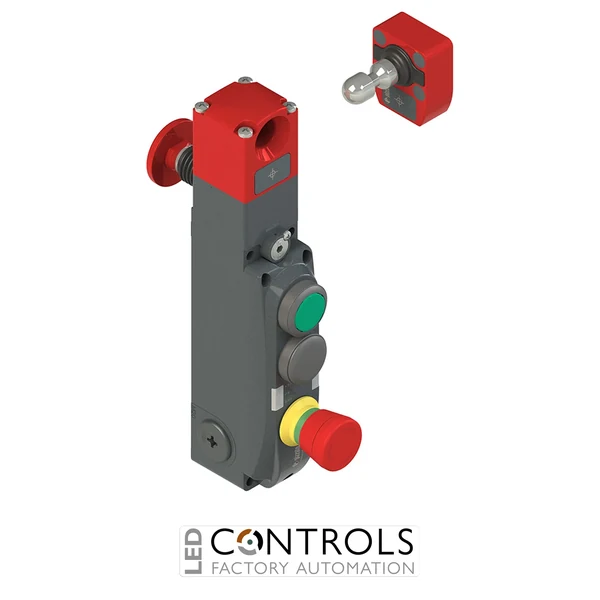

The NG 2D7D416B-F31 features a three-device cover configuration, a rotating head with escape pushbutton and a high-coding-level VN NG-F31 RFID actuator. Its metal housing incorporates three M20 × 1.5 threaded conduit entries and provides IP65 protection according to EN 60529, making it suitable for demanding machine guarding and industrial automation installations.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated controls in one industrial safety device.
- High-coding-level VN NG-F31 actuator supports enhanced protection against manipulation.
- D working method keeps the actuator locked with the solenoid de-energised.
- Integrated escape pushbutton provides a means of releasing the guard from inside the protected area.
- Two safety inputs and two electronic safety outputs support integration with compatible safety controllers.
- Separate signalling outputs provide actuator-inserted and actuator-locked status information.
- Three-device cover configuration provides integrated operator-control functionality at the guarded access point.
- Robust metal housing with IP65 protection for industrial environments.
Key Features
- Pizzato NG series RFID safety locking switch.
- Three-device cover configuration.
- Rotating head with escape pushbutton.
- D working method with actuator locked when the solenoid is de-energised.
- 2 safety inputs IS1-IS2.
- 2 safety outputs OS1-OS2.
- O3 signalling output for actuator inserted status.
- O4 signalling output for actuator locked status.
- I4 or IE1-IE2 inputs for solenoid activation.
- I3 input for actuator programming / reset.
- Safety output activation mode 1 for actuator-inserted and locked monitoring.
- Supplied with high-coding-level VN NG-F31 actuator.
- Metal housing with three M20 × 1.5 threaded conduit entries.
- Supplied without connector.
Reliable Safety Control for Industrial Machinery
RFID safety locking switches such as the Pizzato NG series are designed for machinery where opening a protective guard before hazardous conditions have stopped could expose personnel to risk. The coded actuator enables electronic guard-position monitoring, while the locking mechanism keeps the guard secured until the machine safety system permits access.
The NG 2D7D416B-F31 combines two safety inputs, two electronic safety outputs and dedicated actuator and lock signalling within a single device. Its three-device cover configuration provides integrated operator controls, while the escape pushbutton supports guarded areas where an internal release facility is required as part of the machine safety design.
Typical Applications
- Industrial machine guards and access doors.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Assembly and manufacturing lines.
- Machine tools and machining centres.
- Conveyor and material handling systems.
- Protective enclosures around hazardous machinery.
- OEM machinery requiring integrated guard locking and operator controls.
