Why Choose the Pizzato NG 2D7D419P-F31 Safety Switch?

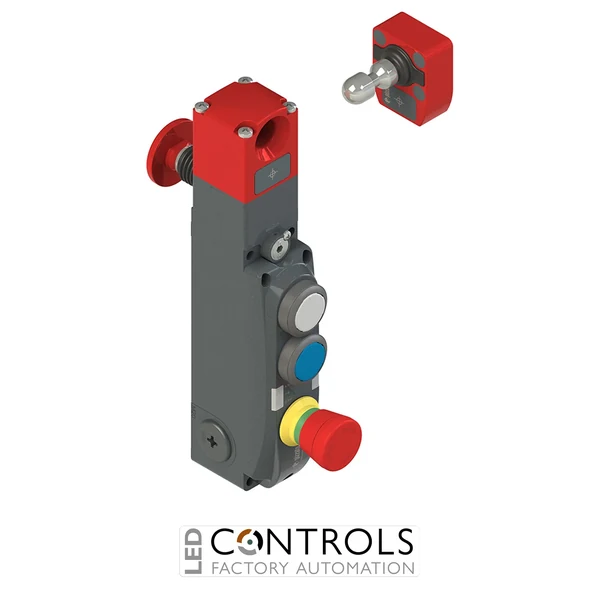

The Pizzato NG 2D7D419P-F31 is an advanced RFID safety switch with guard locking and integrated control devices designed for secure monitoring and control of movable guards, access doors and protective barriers on industrial machinery. Part of the Pizzato NG series, it combines coded electronic actuator detection, guard locking, electronic safety functions and local operator controls within a single industrial safety assembly.
The NG platform is designed for machinery where access to hazardous areas must remain restricted until safe conditions have been established. RFID technology enables coded actuator recognition for dependable guard-position monitoring, while the locking mechanism keeps the associated guard secured when required by the machine safety system. Electronic safety inputs and outputs allow integration with compatible safety PLCs, relays and controllers.
The NG 2D7D419P-F31 is supplied with a compatible F31 coded actuator, creating a matched switch-and-actuator solution for industrial guarding. Its integrated control-device configuration enables machine builders to combine safety interlocking and local operator functions at the access point, reducing the need for separate control components around the machine guard.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated operator controls within one device.
- Coded RFID actuator technology supports reliable electronic guard identification.
- Guard-locking functionality helps restrict access while hazardous machine conditions remain present.
- Electronic safety architecture supports integration with compatible safety PLCs and controllers.
- Dedicated monitoring functions provide information about actuator and locking conditions.
- F31 coded actuator supplied for a matched switch-and-actuator installation.
- Integrated control devices can reduce separate operator-control components at the guarded access point.
- Designed for demanding industrial automation and machine safety applications.
Key Features
- Pizzato NG series RFID safety locking switch.
- RFID coded actuator detection for electronic guard monitoring.
- Integrated guard-locking mechanism.
- D working method with actuator locked when the solenoid is de-energised.
- 2 safety inputs IS1-IS2.
- 2 electronic safety outputs OS1-OS2.
- O3 signalling output for actuator inserted status.
- O4 signalling output for actuator locked status.
- I4 or IE1-IE2 inputs for solenoid activation.
- I3 input for actuator programming / reset.
- Safety output activation mode 1 with outputs active when the actuator is inserted and locked.
- Integrated control devices for local machine functions.
- Supplied with F31 coded actuator.
- Suitable for industrial guards, doors and protective access points.
Reliable Safety Control for Industrial Machinery
RFID safety locking switches such as the Pizzato NG series are designed for machinery where opening a protective guard during operation could expose personnel to hazardous movement or residual process risks. The coded actuator allows the safety system to monitor guard position electronically, while the locking mechanism keeps the access point secured until the required release conditions have been satisfied.
The NG 2D7D419P-F31 combines electronic safety monitoring, coded actuator recognition, guard locking and integrated operator controls within one assembly. Its safety and signalling interfaces enable compatible machine control systems to distinguish between actuator insertion and secure locking, supporting coordinated machine operation and controlled access to hazardous areas.
Typical Applications
- Industrial machine guards and access doors.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Assembly and production lines.
- Machine tools and machining centres.
- Conveyor and material handling equipment.
- Protective gates and guarded hazardous areas.
- OEM machinery requiring integrated guard locking and operator controls.
