Why Choose the Pizzato NG 2D7E411C Safety Switch with Lock?

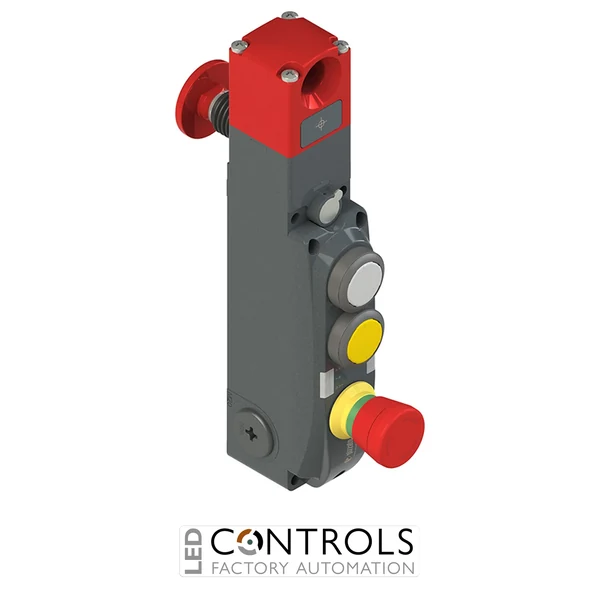

The Pizzato NG 2D7E411C is an advanced RFID-coded safety switch with locking function and integrated control devices designed for monitoring machine guards, safety doors and restricted access points in industrial automation systems. As part of the high-performance Pizzato NG series safety switch range, it combines coded actuator recognition, secure guard locking and integrated operator controls to provide dependable protection for machinery and personnel.
This safety switch features a robust metal housing, integrated control devices and RFID-based actuator recognition for reliable non-contact safety monitoring. The NG series is designed for machines where hazardous conditions may remain after shutdown, requiring protective guards to stay locked until safe operating conditions are achieved.
With a maximum 9750 N actuator holding force, IP65 protection and a high coding level RFID actuator system, the NG 2D7E411C provides a compact solution for machine builders requiring secure access control, integrated controls and reliable safety interlocking.
Key Advantages
- RFID-coded safety switch with guard locking for reliable machine protection.
- Integrated control devices combine operator functions and safety monitoring in one enclosure.
- 9750 N actuator holding force provides secure locking of protective guards.
- IP65 protection rating supports industrial automation applications.
- High coding level RFID actuator technology improves resistance to tampering.
- Compact solution reduces the need for separate control panels and components.
Key Features
- Pizzato NG series RFID safety switch with lock and integrated control devices.
- Metal housing with three threaded M20 x 1.5 cable entries.
- Rotating head with escape pushbutton.
- Working method E: locked actuator with energised solenoid.
- High coding level VN NG-F31 actuator.
- Two safety inputs IS1-IS2 and two electronic safety outputs OS1-OS2.
- Signal outputs for actuator inserted and actuator locked status.
- Integrated illuminated pushbuttons and emergency stop control devices.
Reliable Machine Guard Locking for Industrial Safety
The Pizzato NG series provides advanced machine safety by combining RFID actuator identification with secure locking technology. The redundant electronic design allows the series to achieve high safety performance levels when correctly integrated into suitable safety systems.
The NG 2D7E411C enables machine builders and automation engineers to combine guard locking, safety monitoring and operator controls in a single compact device, reducing installation complexity while maintaining reliable machine protection.
Typical Applications
- Industrial machine guarding and safety doors.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Machine tools and manufacturing equipment.
- Safety enclosures with integrated operator controls.
- OEM machinery and industrial automation systems.
