Why Choose the Pizzato NG 2D7E413G Safety Switch with Lock?

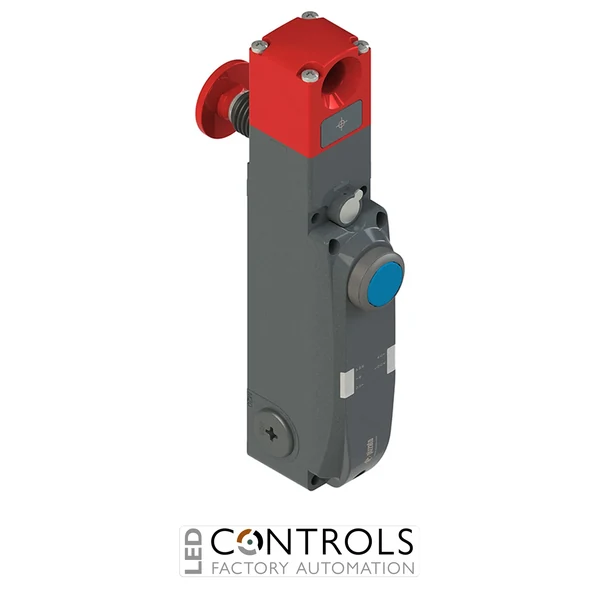

The Pizzato NG 2D7E413G is an advanced RFID safety switch with guard locking and integrated control devices designed for monitoring and securing movable guards, doors and access points on industrial machinery. Part of the Pizzato NG series, it combines electronic guard monitoring, robust mechanical locking and operator-control functionality in a single industrial safety device.
The NG series uses RFID technology to monitor the presence of the associated coded actuator and provides safety-related guard status information to the machine control system. The NG 2D7E413G configuration incorporates an integrated blue control device, making it suitable for installations where a local operator command is required alongside guard monitoring and locking.
Designed for demanding machine-safety applications, the NG platform provides a maximum actuator holding force of 9750 N and can support safety architectures up to PL e, Category 4 and SIL 3 when correctly integrated. This NG 2D7E413G ordering code identifies the safety-switch assembly itself; an actuator is not included in the part designation.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated control functionality in one device.
- High 9750 N maximum actuator holding force for secure machine guarding.
- Integrated blue control device provides local operator-control functionality.
- Electronic safety architecture suitable for advanced industrial machine-safety systems.
- Robust metal construction for demanding machinery environments.
- NG series technology can support safety systems up to PL e, Category 4 and SIL 3.
- RFID-based actuator detection supports reliable guard-position monitoring.
- Suitable for machine builders and automation systems requiring combined interlocking and guard locking.
Key Features
- Pizzato NG series safety switch with guard locking.
- Integrated RFID guard-monitoring technology.
- 9750 N maximum actuator holding force.
- Integrated blue control device.
- Electronic safety outputs for integration with safety control systems.
- Robust metal housing.
- Designed for industrial guard-door and access-point monitoring.
- NG series supports series connection of compatible Pizzato safety devices.
- Maximum safety performance up to PL e / Category 4 / SIL 3 with appropriate system design.
- Switch-only ordering configuration without an actuator suffix.
Reliable RFID Guard Locking for Industrial Machinery
Guard-locking safety switches are used where opening a machine guard before hazardous movement has stopped could expose personnel to risk. The Pizzato NG series combines RFID-based guard detection with a mechanically locked actuator, allowing the machine safety system to supervise access while providing a high holding force for the guard.
The NG platform is designed for sophisticated industrial safety systems and can be incorporated into series-connected safety architectures while maintaining high safety performance when correctly engineered. The integrated control-device capability of the NG 2D7E413G also allows local operator functions to be positioned directly at the guarded access point.
Typical Applications
- Industrial machine guard doors and access gates.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Machine tools and production equipment.
- Conveyor and material handling systems.
- Automated assembly and manufacturing lines.
- Guarded machinery requiring local operator-control functionality.
