Why Choose the Pizzato NG 2D7E417F-F31 Safety Switch with Lock?

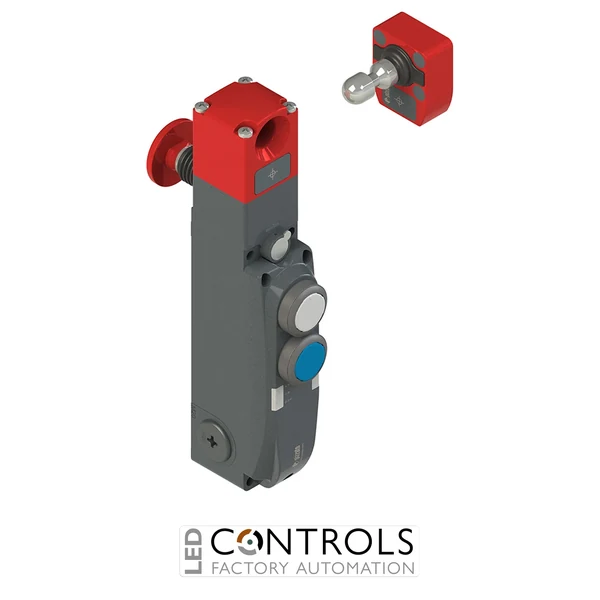

The Pizzato NG 2D7E417F-F31 is an NG series RFID safety switch with guard locking and integrated control devices, designed for monitoring and controlling access to hazardous areas of industrial machinery. Supplied complete with the VN NG-F31 high-coding-level actuator, it combines coded guard detection, electronic safety monitoring, controlled locking and local operator functions in a robust industrial assembly.
This configuration uses the E working method, with the actuator locked when the solenoid is energised. It provides 2 safety inputs IS1–IS2 and 2 safety outputs OS1–OS2, together with O3 signalling for actuator-inserted status and O4 signalling for actuator-locked status. Activation Mode 1 means the safety outputs are active when the actuator is correctly inserted and locked.
The NG 2D7E417F-F31 incorporates two integrated control devices: a white 1NO + 1NC pushbutton and a blue 1NO + 1NC pushbutton. Its metal housing has three threaded M20×1.5 conduit entries, while the rotating head incorporates an escape pushbutton. The switch provides a holding force of 9750 N and IP65 protection according to EN 60529.
Key Advantages
- Combines RFID guard monitoring, guard locking and local operator controls in one assembly.
- Supplied with the VN NG-F31 high-coding-level actuator.
- High 9750 N holding force for demanding machine-guard applications.
- E working method locks the actuator when the solenoid is energised.
- Provides 2 safety inputs and 2 safety outputs for integration with compatible safety systems.
- Dedicated signalling outputs indicate actuator-inserted and actuator-locked status.
- Integrated white and blue 1NO + 1NC pushbuttons provide local operator-control functions.
- Rotating head with escape pushbutton supports guarded areas requiring an internal release facility.
Key Features
- Pizzato NG series RFID safety switch with lock.
- VN NG-F31 high-coding-level actuator included.
- Two integrated control devices.
- Position 1: white pushbutton, 1NO + 1NC.
- Position 2: blue pushbutton, 1NO + 1NC.
- E working method: actuator locked with energised solenoid.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- O3 signalling output: actuator inserted.
- O4 signalling output: actuator locked.
- I4 or IE1–IE2 inputs for solenoid activation.
- I3 input for actuator programming / reset.
- Activation Mode 1: safety outputs active with actuator inserted and locked.
- 9750 N holding force.
- Rotating head with escape pushbutton.
- Metal housing with three threaded M20×1.5 conduit entries.
- IP65 according to EN 60529.
- Supplied without connector.
Reliable RFID Guard Locking for Industrial Machinery
The Pizzato NG 2D7E417F-F31 combines RFID actuator recognition with electronic safety monitoring and a high-force locking mechanism. With Activation Mode 1, the OS1 and OS2 safety outputs become active when the VN NG-F31 actuator is correctly inserted and locked, enabling a compatible safety controller or safety PLC to supervise the guarded access point as part of the machine's safety-related control system.
The integrated white and blue pushbuttons provide local operator functions directly at the guard, reducing the need for a separate control station. The rotating head with escape pushbutton also provides an escape-release facility for appropriately designed guarded areas, making this configuration particularly suitable for automated cells and machinery requiring controlled personnel access.
Typical Applications
- Automated production machinery and manufacturing cells.
- Robotic cells and perimeter guarding systems.
- Packaging and processing machinery.
- Machine-tool access doors and protective enclosures.
- Conveyor and material-handling equipment.
- Automated assembly and production lines.
- Guarded areas requiring an escape-release facility.
- Industrial access points requiring integrated local operator controls.
