Why Choose the Pizzato NS D4AZ1DA3 Safety Locking Switch?

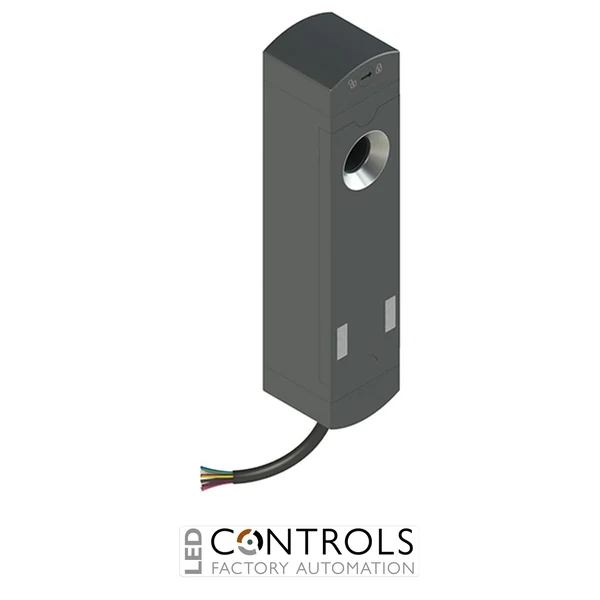

The Pizzato NS D4AZ1DA3 is a robust RFID safety locking switch without actuator, designed for reliable monitoring and locking of machine guards, access doors and hazardous areas in industrial automation systems. As part of the advanced Pizzato NS safety locking switch series, it combines non-contact RFID actuator detection, electronic safety monitoring and electromagnetic guard locking in a durable technopolymer housing.
The D working principle keeps the actuator locked when the electromagnetic solenoid is de-energised, helping maintain guard locking following loss of electrical power. The switch is supplied without an actuator, allowing the appropriate compatible NS-series RFID actuator to be selected separately. A front screwdriver-operated auxiliary release provides a practical manual release facility for authorised servicing and maintenance.
The NS D4AZ1DA3 uses Mode 1, with the safety outputs active when the protective guard is locked. It provides two safety inputs, two safety outputs, actuator-inserted and actuator-locked signalling outputs, two electromagnetic activation inputs and a programming/reset input. Its pre-wired cable connection and robust enclosure make it suitable for integration into industrial machine safety systems.
Key Advantages
- Advanced RFID safety locking switch with electromagnetic guard locking.
- D working principle keeps the actuator locked when the solenoid is de-energised.
- Supplied without an actuator, allowing selection of the required compatible NS-series actuator.
- 2,100 N actuator holding force provides secure guard locking.
- Front screwdriver-operated auxiliary release for convenient manual unlocking.
- Mode 1 safety outputs become active when the protective guard is locked.
- Separate signalling outputs provide actuator insertion and locking status.
- Pre-wired cable connection simplifies electrical installation.
- Robust technopolymer construction with IP67 and IP69K protection.
Key Features
- Pizzato NS safety locking switch series with RFID technology.
- NS D4AZ1DA3 safety locking switch supplied without actuator.
- D working principle with actuator locked by a de-energised electromagnetic solenoid.
- Non-contact digitally coded actuator detection.
- 2,100 N actuator holding force.
- Mode 1 with safety outputs active when the protective guard is locked.
- Two safety inputs IS1 and IS2.
- Two safety outputs OS1 and OS2.
- Signalling output O3 for actuator inserted status.
- Signalling output O4 for actuator locked status.
- Two electromagnetic activation inputs IE1 and IE2.
- I3 programming and reset input.
- Front screwdriver-operated auxiliary release.
- Supplied with a pre-wired cable connection.
- No integrated emergency release.
- IP67 protection according to EN 60529.
- IP69K protection according to ISO 20653.
Reliable Machine Guarding and Safety Control
The Pizzato NS series combines RFID actuator recognition with electronic safety monitoring and electromagnetic guard locking to provide a dependable interface between machine guards and safety control systems. The non-contact RFID technology detects a compatible NS-series actuator while the electronic safety outputs communicate the guard status to an appropriate safety PLC or safety module.
The NS D4AZ1DA3 uses the D working principle, meaning the actuator remains locked when the electromagnetic solenoid is de-energised. Its Mode 1 configuration activates the OS1 and OS2 safety outputs when the protective guard is locked, while O3 and O4 provide separate actuator-inserted and actuator-locked status signals. The pre-wired cable connection provides a straightforward connection arrangement for suitable machine safety circuits.
Typical Applications
- Machine guarding and safety access doors.
- Industrial production and processing machinery.
- Automated manufacturing systems.
- Packaging and material handling equipment.
- Robotic cells and automated workstations.
- Machines with hazardous movement or stored energy.
- Safety circuits requiring RFID-coded guard locking.
- Industrial machinery requiring monitored electromagnetic guard locking.
