Why Choose the Pizzato NSD4CE1SB2-F41 Safety Interlock Switch?

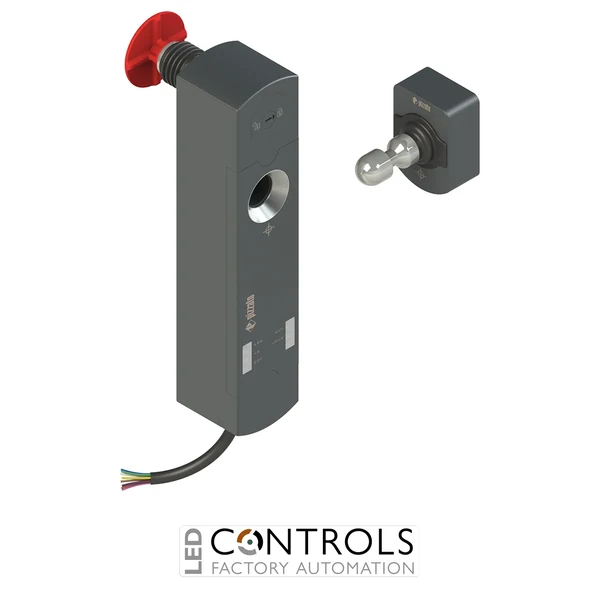

The Pizzato NSD4CE1SB2-F41 is a high-performance RFID safety interlock switch with solenoid guard locking, designed for industrial machine safety applications requiring secure access control, reliable actuator recognition, and strong tamper resistance. Manufactured by Pizzato Elettrica, it ensures machinery remains safely locked until hazardous conditions are fully resolved.
This model belongs to the Pizzato NS series of safety locking switches featuring high-coded RFID actuator technology (F41) combined with integrated solenoid locking. It is widely used in OEM machinery, robotic safety systems, and automated production lines where high integrity guarding and dependable performance are required.
The NSD4CE1SB2-F41 operates in an S working method configuration, meaning the actuator is locked using a de-energised 24 Vdc solenoid. Safety outputs are enabled only when the guard is closed, correctly aligned, and the RFID system confirms the presence of the correct high-coded actuator. {index=1}
Key Advantages
- High-coded RFID actuator system (F41) for maximum tamper resistance.
- Integrated solenoid guard locking for secure machine access control.
- Reliable monitoring of door closed, actuator inserted, and lock status.
- Designed for OEM machinery and industrial automation systems.
- Rugged technopolymer housing for demanding industrial environments.
- Supports high safety integrity architectures (PL e / SIL 3 system dependent).
Key Features
- Pizzato NS series safety interlock switch.
- Model: NSD4CE1SB2-F41.
- High-coded RFID actuator system (F41 type).
- 2 safety inputs (IS1–IS2).
- 2 safety outputs (OS1–OS2).
- 1 actuator inserted output (O3).
- 1 actuator locked output (O4).
- 2 solenoid activation inputs (IE1–IE2).
- 1 programming/reset input (I3).
- M12 connector, 12-pole configuration.
Reliable Machine Guarding for Industrial Systems
The Pizzato NSD4CE1SB2-F41 is designed to prevent access to hazardous machinery by ensuring guards remain locked until safe conditions are confirmed. The RFID system validates the correct high-coded actuator, significantly reducing risks of bypass, tampering, or unintended machine restart.
Its safety outputs integrate with PLCs and safety controllers, enabling continuous monitoring of door status, actuator detection, and locking condition in automated industrial environments. {index=2}
Typical Applications
- Industrial automation systems.
- Robotic safety cells.
- Packaging and processing machinery.
- Machine tools with safety guarding.
- OEM equipment manufacturing.
- Material handling and conveyor systems.
