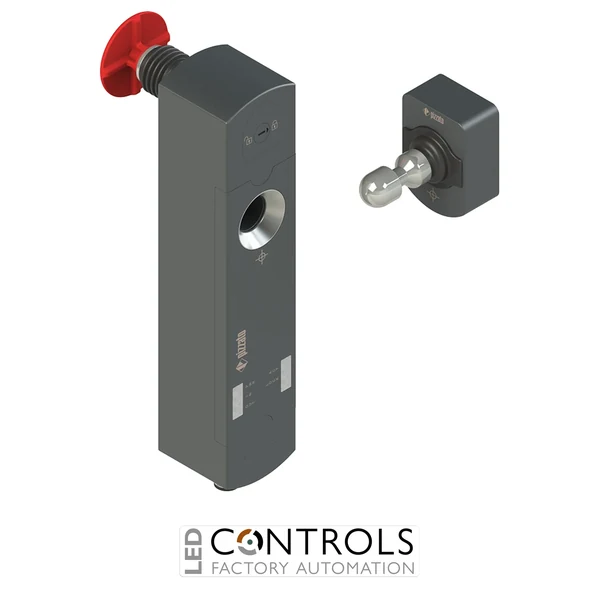

Why Choose the Pizzato NSG4CE1SMK-F41 Safety Locking Switch?
The Pizzato NSG4CE1SMK-F41 is a high-performance RFID-coded safety locking switch with actuator designed for machine guarding, interlocking, and industrial safety systems. As part of the advanced Pizzato NS series safety switch family, it delivers robust protection for hazardous machinery in automated production environments where controlled access is essential.
This model uses a de-energised solenoid locking mechanism combined with a high coding level F41 RFID actuator, ensuring that only a correctly matched actuator can unlock the guard. This significantly increases resistance to tampering and supports compliance with modern machine safety requirements.
With a strong retention force of up to 2100 N, IP67/IP69K protection, and a rugged technopolymer housing, the NSG4CE1SMK-F41 is designed for demanding industrial environments such as robotics, packaging machines, and automated production lines. RatingValue: 4.8
Key Advantages
- High-security RFID F41 high coding level for maximum anti-tamper protection.
- 2100 N locking/retention force for secure guard holding.
- IP67 and IP69K protection rating for harsh industrial environments.
- De-energised solenoid locking for fail-safe operation.
- Supports advanced safety outputs for machine integration.
Key Features
- Pizzato NS series safety locking switch.
- Model: NSG4CE1SMK-F41.
- High coding level RFID actuator (F41).
- De-energised solenoid guard locking system.
- Dual safety outputs OS1/OS2 for safety circuits.
- Signalling outputs for actuator status monitoring.
- Auxiliary release option (depending on configuration).
- M12 12-pin connection support (system dependent).
The NSG4CE1SMK-F41 ensures machinery remains safely isolated while a guard is open. The system only allows operation when the correct RFID-coded actuator is detected and the guard is fully closed and locked, preventing accidental or unauthorised machine startup.
Its high coding level F41 RFID system provides strong resistance to duplication and bypass attempts, making it suitable for high-risk automation applications such as robotics, packaging lines, and complex manufacturing systems.
Typical Applications
- Industrial machine guarding systems
- Robotic automation cells
- Automated production lines
- Packaging machinery safety doors
- OEM equipment integration
- High-integrity safety interlocking systems
