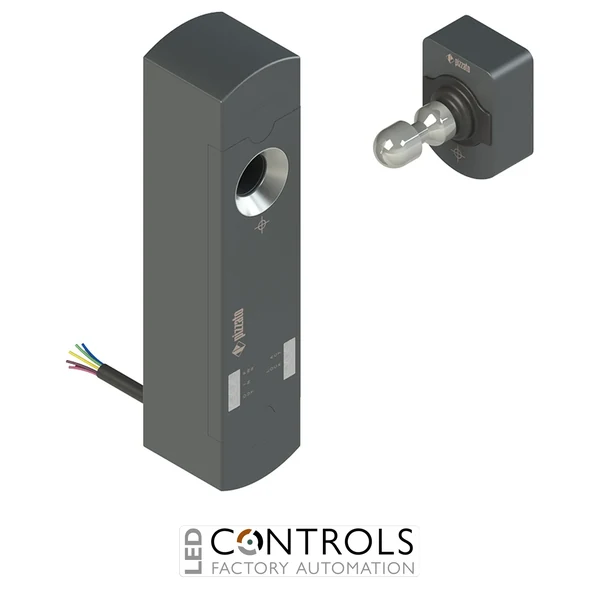

Why Choose the Pizzato NSH4ZZ1DB2-F41 Safety Locking Switch?
The Pizzato NSH4ZZ1DB2-F41 is a high-integrity RFID safety interlock switch with solenoid locking designed for machine guarding applications in advanced industrial automation systems. As part of the Pizzato NS series safety locking switch family, it provides secure guard locking, actuator detection, and reliable safety monitoring for modern machinery environments.
This model ensures that protective guards remain locked during hazardous machine operations and only allow access when safe conditions are confirmed. Its RFID-coded actuator system delivers strong anti-tamper protection, while the integrated solenoid locking mechanism ensures controlled access to safety doors and machine enclosures.
The NSH4ZZ1DB2-F41 is widely used in OEM machinery and automated production systems requiring high functional safety, diagnostic feedback, and compliance with international standards such as ISO 14119. It is suitable for safety architectures up to PL e / SIL 3 depending on system design.
This variant belongs to the NS Mode 2 operating family, featuring an energised solenoid locking principle combined with a high-level coded F41 RFID actuator, meaning only a uniquely matched actuator can operate the switch, significantly improving tamper resistance and safety integrity.
Key Advantages
- High-security RFID-coded machine safety interlock system.
- Energised solenoid locking ensures controlled guard access.
- F41 high-level coding provides strong anti-tamper protection.
- Designed for integration into PL e / SIL 3 safety systems (system dependent).
- Robust industrial housing for harsh environments.
- Supports series connection in safety control architectures.
Key Features
- Pizzato NS series safety locking switch.
- Model: NSH4ZZ1DB2-F41.
- RFID high-level coded actuator system (F41 coding).
- Energised solenoid locking mechanism (fail-safe control principle).
- Mode 2 NS operating architecture.
- Technopolymer industrial housing.
- IP67 / IP69K protection rating for demanding environments.
The Pizzato NSH4ZZ1DB2-F41 ensures that machine guards cannot be opened while hazardous motion is active. Its RFID-coded system prevents actuator substitution or bypass attempts, improving operator safety in automated industrial environments.
The NS series architecture allows multiple safety devices to be connected in series while maintaining high safety integrity levels, making it suitable for complex machine safety networks and automated production systems.
Typical Applications
- Industrial machine guarding systems.
- Automated production and assembly lines.
- Robotics safety enclosures.
- Packaging and processing machinery.
- Conveyor access doors and safety panels.
- OEM machine safety integration.
