Why Choose the Pizzato NX P52CE1SMK RFID Safety Switch?

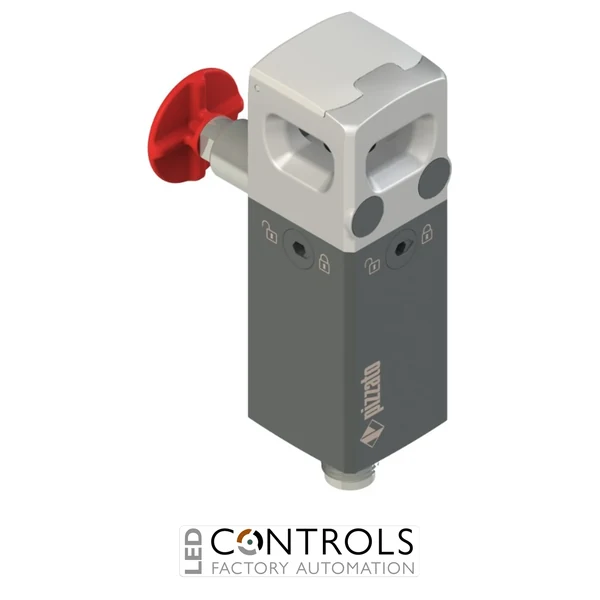

The Pizzato NX P52CE1SMK is a compact RFID safety switch with guard locking designed for secure monitoring of machine guards, doors and hazardous access points in industrial automation systems. As part of the advanced Pizzato NX series RFID safety switches, it combines RFID-coded actuator recognition with bistable solenoid locking technology to provide dependable machine safety and operator protection.
This safety switch features Mode 2 bistable operation, where the safety outputs are activated when the actuator is inserted. The integrated EDM feedback input, safety inputs, safety outputs and signalling channels provide flexible integration with modern safety relays and safety PLC systems.
Featuring a reprogrammable RFID actuator system, M12 12-pole connector, RGB LED status indication and IP67 / IP69K protection, the NX P52CE1SMK is ideal for demanding industrial machinery requiring reliable guard interlocking and advanced safety monitoring.
Key Advantages
- Compact RFID safety switch with guard locking for industrial machine protection.
- RFID-coded actuator recognition provides secure non-contact identification.
- Bistable solenoid locking maintains the selected locked or unlocked state.
- 6000 N maximum holding force provides secure guard retention.
- IP67 / IP69K protection supports demanding industrial environments.
- Integrated EDM feedback input enables external device monitoring.
- RGB LED illuminated cover provides clear operating status indication.
Key Features
- Pizzato NX RFID safety switch series.
- Mode 2 bistable solenoid operation.
- Reprogrammable RFID actuator recognition.
- 2 safety inputs IS1 / IS2.
- 2 safety outputs OS1 / OS2.
- 1 signalling output O3 for actuator inserted status.
- 1 signalling output O4 for actuator locked status.
- 2 solenoid activation inputs IE1 / IE2.
- 1 programming / reset input I3.
- 1 EDM feedback input I5.
- M12 12-pole connector.
- RGB LED multicolour status signalling cover.
Reliable Safety Interlocking for Industrial Machinery
RFID safety switches such as the Pizzato NX P52CE1SMK provide secure access control by ensuring machinery safety circuits respond only when the correct coded actuator is detected. The RFID technology helps reduce the risk of bypassing while maintaining reliable protection for operators working around hazardous equipment.
The NX series has been designed for machine builders and automation engineers requiring compact safety interlocks with advanced diagnostics, high coding security and reliable integration into modern industrial safety systems. The bistable locking principle keeps the device stable in its last commanded state, even during power interruptions.
Typical Applications
- Machine guard doors and protective covers.
- Robotic cells and automated production systems.
- Packaging and assembly machinery.
- Industrial processing equipment.
- Manufacturing lines requiring RFID safety interlocking.
- Safety systems using safety relays or safety PLCs.
