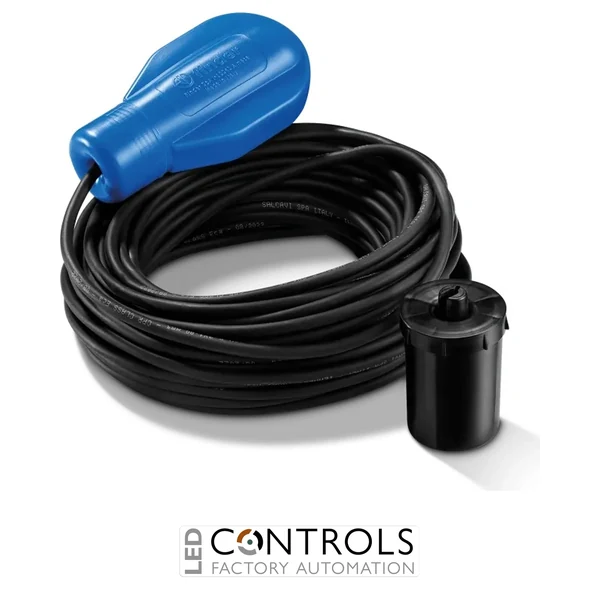

Finder 72.A1.1.000.0501 is an IP68 float switch with a 5 m polychloroprene cable, designed for level control in grey water and wastewater applications including pump start stop, alarms and low level protection.
£33.17
The Finder 72.A1.1.000.0501 is a reliable float level switch from the Finder 72 Series, designed for automatic liquid level control in tanks, reservoirs, pumps and water management systems. This compact mechanical float switch provides dependable level detection for filling and emptying applications, making it suitable for residential, commercial and industrial fluid handling systems.
The 72.A1.1.000.0501 features a single change-over contact (SPDT) configuration with a 5 metre cable, allowing direct control of pumps and level control equipment. Its sealed construction and IP68 protection rating ensure reliable operation in submerged applications and demanding environments where protection against moisture and water ingress is required.
Designed for automatic filling and emptying functions, the Finder float switch includes a counterweight for correct positioning and stable operation. The polypropylene housing provides excellent resistance for general water applications, while the compact design enables easy installation in tanks, wells and pumping systems.
The Finder 72.A1 series float switches provide a simple and effective method of automatically controlling liquid levels. As the float position changes with the liquid level, the internal switching mechanism activates connected equipment such as pumps, alarms or control circuits.
The 72.A1.1.000.0501 is designed for applications where dependable water level management is required. Its sealed IP68 construction and robust polypropylene body make it suitable for tanks, drainage systems, water storage installations and pumping equipment.
| Current | 10 A |
|---|---|
| IP Rating | IP68 |
| Series | 72 Series |
| Product type | Float level switch |
| Ingress protection | IP68 |
| Cable length | 5 m |
| Cable type | Polychloroprene |
| Contact type | Changeover (NO and NC) |
| Rated current | up to 10 A AC (resistive) |
| Body material | Polypropylene |
| Media suitability | Grey water, wastewater and general liquids |
| HS Code | 90261089 |
| Country of Manufacture | Italy |
The Finder 72.A1.1.000.0501 is used for automatic liquid level monitoring and pump control in tanks, reservoirs and water systems.
The device uses a 1 CO (SPDT) change-over contact configuration for flexible control applications.
The Finder 72.A1.1.000.0501 is supplied with a 5 metre cable for convenient installation.
Yes. The float switch has an IP68 protection rating, making it suitable for submerged liquid level applications.
Yes. The float switch supports both filling and emptying control functions depending on the wiring arrangement.
Finder 72 Series float switches provide dependable liquid level control solutions for pump systems, water management equipment and industrial automation applications worldwide.{ "@context": "https://schema.org/", "@type": "Product", "name": "Finder 72.A1.1.000.0501 Float Level Switch 5m Cable", "sku": "72.A1.1.000.0501", "mpn": "72.A1.1.000.0501", "brand": { "@type": "Brand", "name": "Finder" }, "category": "Float Level Switches", "description": "Finder 72.A1.1.000.0501 float level switch with 5 metre cable, IP68 protection and SPDT contact for automatic liquid level control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Contact configuration", "value": "1 CO (SPDT)" }, { "@type": "PropertyValue", "name": "Cable length", "value": "5 m" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP68" }, { "@type": "PropertyValue", "name": "Switching current", "value": "10 A" }, { "@type": "PropertyValue", "name": "Housing material", "value": "Polypropylene" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Finder 72.A1.1.000.0501 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 72.A1.1.000.0501 is used for automatic liquid level monitoring and pump control in tanks, reservoirs and water systems." } }, { "@type": "Question", "name": "What type of contact does this float switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The device uses a 1 CO (SPDT) change-over contact configuration for flexible control applications." } }, { "@type": "Question", "name": "What is the cable length of this float switch?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 72.A1.1.000.0501 is supplied with a 5 metre cable for convenient installation." } }, { "@type": "Question", "name": "Is this float switch waterproof?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The float switch has an IP68 protection rating, making it suitable for submerged liquid level applications." } }, { "@type": "Question", "name": "Can this switch be used for filling and emptying?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The float switch supports both filling and emptying control functions depending on the wiring arrangement." } } ] }
