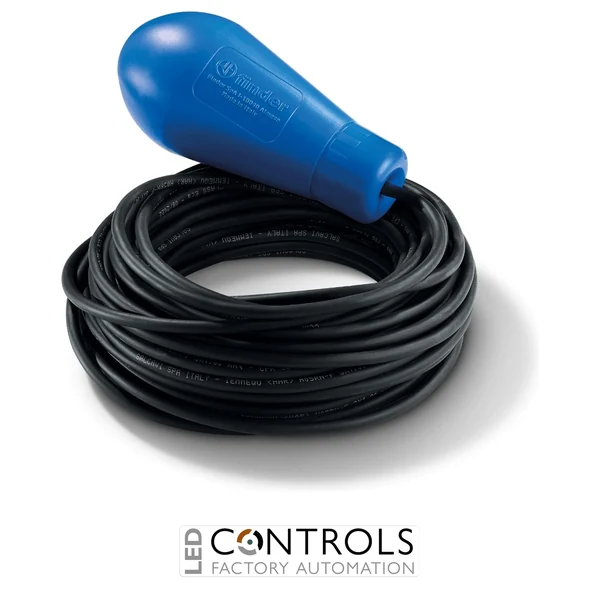

Finder 72.B1.1.000.2001 is an IP68 float switch with a 20 metre cable and triple-sealed float chamber designed for black water and industrial wastewater including pump control and level alarms.
£127.32
The Finder 72.B1.1.000.2001 is a robust and reliable float level switch designed for automatic liquid level control in water handling, wastewater and industrial pumping applications. As part of the advanced Finder 72 Series level control range, it provides dependable level detection for systems requiring accurate pump control and protection against overflow or dry running.
This float switch features a durable triple-sealed float chamber designed for demanding environments, including applications with suspended residues and industrial wastewater. Its integrated cable connection and sealed construction allow reliable operation in wet locations where long-term performance and resistance to environmental conditions are required.
With a 20 m cable length, IP68 protection rating and a 1 changeover contact (SPDT) output, the Finder 72.B1.1.000.2001 is suitable for filling and emptying control systems, tanks, reservoirs and pumping stations.
Float switches such as the Finder 72.B1.1.000.2001 provide automatic monitoring of liquid levels by changing contact state as the float moves with the rising or falling fluid level. This enables pumps and control equipment to operate automatically without requiring manual intervention.
The Finder 72.B1 series is engineered for demanding environments where dependable switching performance is essential. Its sealed float design helps protect internal components while maintaining reliable operation in tanks, wells, reservoirs and wastewater installations.
| Current | 10 A |
|---|---|
| IP Rating | IP68 |
| Series | 72 Series |
| Product type | Float level switch |
| Ingress protection | IP68 (suitable for continuous immersion) |
| Cable length | 20 metres |
| Contact type | Changeover (NO and NC) |
| Rated current | Up to 10 A AC resistive / 8 A inductive |
| Maximum switching voltage | 250 V AC |
| Body and float material | Polypropylene |
| Operating temperature | Up to +50 CC |
| Suitable media | Black water, industrial wastewater and other contaminated liquids |
| HS Code | 90261089 |
| Country of Manufacture | Italy |
The Finder 72.B1.1.000.2001 is used for automatic liquid level control in tanks, reservoirs, pumping systems and wastewater applications.
This model is supplied with a 20 metre cable for flexible installation in larger tanks and industrial systems.
The float switch features a 1 CO (SPDT) changeover contact suitable for controlling pumps and electrical circuits.
Yes. The triple-sealed float chamber design makes it suitable for wastewater and industrial applications containing suspended residues.
The Finder 72.B1.1.000.2001 provides an IP68 protection rating for reliable operation in wet environments.
Finder 72 Series float switches are widely used in industrial and commercial liquid management systems where reliable level monitoring, robust construction and dependable switching performance are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Finder 72.B1.1.000.2001 Float Level Switch", "sku": "72.B1.1.000.2001", "mpn": "72.B1.1.000.2001", "brand": { "@type": "Brand", "name": "Finder" }, "category": "Liquid Level Sensors", "description": "Finder 72.B1.1.000.2001 float level switch with 20m cable, IP68 protection and SPDT contact for automatic liquid level control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Contact configuration", "value": "1 CO (SPDT)" }, { "@type": "PropertyValue", "name": "Cable length", "value": "20 m" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP68" }, { "@type": "PropertyValue", "name": "Rated current", "value": "10 A" }, { "@type": "PropertyValue", "name": "Maximum temperature", "value": "50 °C" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Finder 72.B1.1.000.2001 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 72.B1.1.000.2001 is used for automatic liquid level control in tanks, reservoirs, pumping systems and wastewater applications." } }, { "@type": "Question", "name": "How long is the cable supplied with this float switch?", "acceptedAnswer": { "@type": "Answer", "text": "This model is supplied with a 20 metre cable for flexible installation in larger tanks and industrial systems." } }, { "@type": "Question", "name": "What type of contact does this float switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The float switch features a 1 CO (SPDT) changeover contact suitable for controlling pumps and electrical circuits." } }, { "@type": "Question", "name": "Is the Finder 72.B1.1.000.2001 suitable for wastewater applications?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The triple-sealed float chamber design makes it suitable for wastewater and industrial applications containing suspended residues." } }, { "@type": "Question", "name": "What protection rating does this float switch provide?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 72.B1.1.000.2001 provides an IP68 protection rating for reliable operation in wet environments." } } ] }
