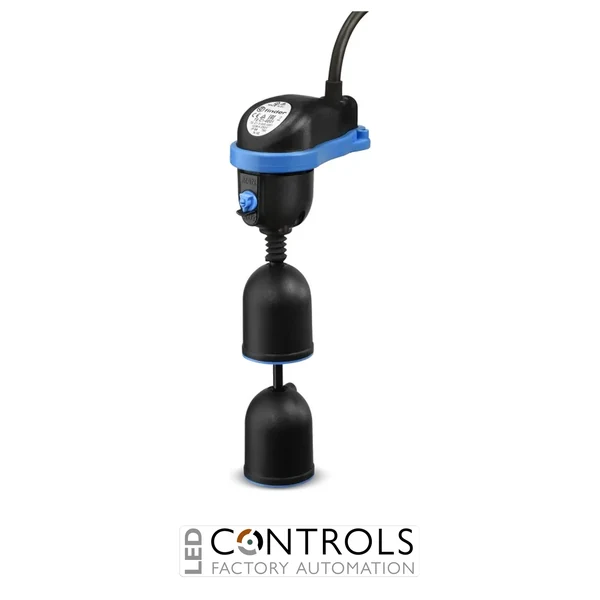

Finder 72.C1.0.000.0201 is a space-saving IP68 float switch with a 2 metre cable, designed for level control of general liquids in tanks, wells and pumping systems.
£55.09
The Finder 72.C1.0.000.0201 is a compact and reliable float level switch designed for automatic liquid level regulation in water management, pumping and industrial control applications. As part of the versatile Finder 72 Series float switch range, it provides dependable ON/OFF level monitoring where accurate filling and emptying control is required.
This space-saving float switch is specifically designed for installations where conventional float switches cannot be easily fitted. It features a durable polypropylene housing, integrated protective bellows and a magnetic switching mechanism, providing reliable operation in clean water and general liquid applications.
With a 2 m H07 RN-F cable, IP68 protection rating and a 1 CO (SPDT) changeover contact, the Finder 72.C1.0.000.0201 is suitable for pump control, tanks, reservoirs, swimming pools and industrial water management systems.
Float switches such as the Finder 72.C1.0.000.0201 provide automatic monitoring of liquid levels by switching electrical contacts as the float moves with changing fluid levels. This enables pumps and control equipment to operate automatically for filling, draining and protection applications.
The compact construction and sealed IP68 enclosure make this float switch suitable for environments where reliable operation in wet conditions is essential. Its flexible contact arrangement allows use in both filling and emptying control circuits, making it suitable for a wide range of liquid management systems.
| Current | 10 A |
|---|---|
| IP Rating | IP68 |
| Series | 72 Series |
| Product type | Float level switch |
| Ingress protection | IP68 (suitable for submerged use) |
| Cable length | 2 metres |
| Contact type | Changeover (SPDT) |
| Rated current | 10 A AC (resistive) / 8 A inductive |
| Rated voltage | 250 V AC / 30 V DC |
| Cable material | Polychloroprene (H07 RN-F) |
| Body material | Polypropylene |
| Maximum fluid temperature | up to +50 CC |
| Maximum working pressure | approx. 3.9 bar (installation dependent) |
| HS Code | 90261029 |
| Country of Manufacture | Italy |
The Finder 72.C1.0.000.0201 is used for automatic liquid level control in tanks, pumps, reservoirs and water management systems.
This model is supplied with a 2 metre H07 RN-F cable for straightforward installation.
Yes. The 1 CO (SPDT) changeover contact allows the switch to be configured for either filling or emptying control.
The float switch provides an IP68 protection rating, allowing reliable operation in submerged applications.
It is commonly installed in tanks, wells, pumping stations, swimming pools and industrial water control systems.
Finder 72 Series float switches are widely used in industrial and commercial liquid control systems where compact design, reliable switching and long-term performance are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Finder 72.C1.0.000.0201 Float Level Switch", "sku": "72.C1.0.000.0201", "mpn": "72.C1.0.000.0201", "brand": { "@type": "Brand", "name": "Finder" }, "category": "Liquid Level Sensors", "description": "Finder 72.C1.0.000.0201 compact IP68 float level switch with 2m cable and SPDT contact for automatic liquid level control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Contact configuration", "value": "1 CO (SPDT)" }, { "@type": "PropertyValue", "name": "Cable length", "value": "2 m" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP68" }, { "@type": "PropertyValue", "name": "Rated current", "value": "10 A" }, { "@type": "PropertyValue", "name": "Housing material", "value": "Polypropylene" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Finder 72.C1.0.000.0201 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Finder 72.C1.0.000.0201 is used for automatic liquid level control in tanks, pumps, reservoirs and water management systems." } }, { "@type": "Question", "name": "What cable length is supplied with this float switch?", "acceptedAnswer": { "@type": "Answer", "text": "This model is supplied with a 2 metre H07 RN-F cable for straightforward installation." } }, { "@type": "Question", "name": "Can this float switch control both filling and emptying operations?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The 1 CO (SPDT) changeover contact allows the switch to be configured for either filling or emptying control." } }, { "@type": "Question", "name": "What protection rating does the Finder 72.C1.0.000.0201 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The float switch provides an IP68 protection rating, allowing reliable operation in submerged applications." } }, { "@type": "Question", "name": "Where is this float switch typically installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is commonly installed in tanks, wells, pumping stations, swimming pools and industrial water control systems." } } ] }
