Why Choose the IMO AA1/AN-1A Inductive Proximity Switch?

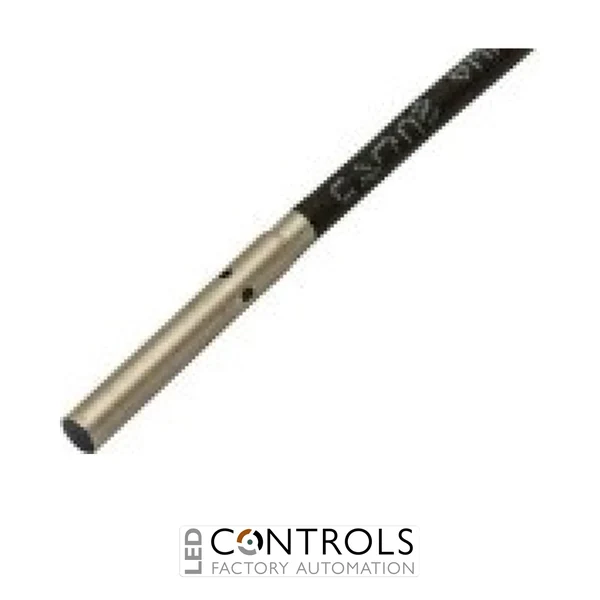

The IMO AA1/AN-1A is an ultra-miniature inductive proximity switch designed for precise, contactless detection of metallic objects in industrial machinery and automation systems. Part of the IMO AA miniature inductive sensor series, its compact Ø3 mm cylindrical stainless steel housing makes it particularly suitable for installations where mounting space is extremely limited.
This shielded, flush-mount sensor provides a nominal sensing distance of 0.6 mm and features a normally open NPN transistor output. Operating from a 10–30 V DC supply, the AA1/AN-1A can be integrated with compatible PLC inputs, machine controllers and other industrial automation equipment for reliable position, presence and component detection.
The sensor is supplied with a permanently connected 2 m PUR cable and incorporates a yellow LED for output-state indication. Its IP67-rated AISI 303 stainless steel housing, protection against short circuits and reverse polarity, and operating temperature range of -25 to +70 °C support dependable operation in demanding industrial environments.
Key Advantages
- Ultra-compact Ø3 mm inductive proximity sensor for space-restricted installations.
- Contactless detection of metallic targets reduces mechanical wear.
- 0.6 mm nominal sensing distance for precise short-range detection.
- NPN normally open output for integration with compatible industrial control systems.
- 10–30 V DC operating voltage suits common automation supplies.
- Shielded construction enables flush mounting in suitable metal surroundings.
- Integral 2 m PUR cable provides a robust electrical connection.
- IP67 protection and stainless steel construction suit demanding machinery environments.
Key Features
- IMO AA miniature inductive sensor series.
- Ø3 mm cylindrical sensor body.
- 0.6 mm nominal sensing distance.
- Operating distance of 0–0.48 mm.
- NPN normally open (NO) output.
- 10–30 V DC operating supply.
- Maximum load current of 100 mA.
- Switching frequency up to 3 kHz.
- Yellow LED output-state indication.
- Shielded / flush-mount sensing design.
- AISI 303 stainless steel housing.
- 2 m PUR cable connection.
- IP67 ingress protection.
- Short-circuit and reverse-polarity protection.
Inductive proximity switches detect metallic targets by generating an electromagnetic field at the active sensing face. When a suitable metal object enters this field, the sensor changes its transistor output state, allowing a PLC or machine controller to determine the presence or position of the target without physical contact.
The exceptionally small Ø3 mm body of the IMO AA1/AN-1A makes it particularly valuable for compact assemblies, precision machinery and automated equipment where conventional proximity sensors are too large. Its high switching frequency also supports rapid detection in applications involving fast-moving machine components.
Typical Applications
- Metal component presence detection.
- Machine position and end-position sensing.
- Compact assembly and production machinery.
- Automated handling and pick-and-place systems.
- Component counting and positioning equipment.
- Packaging and manufacturing machinery.
- Robotics and compact mechanical assemblies.
- OEM industrial automation systems.
