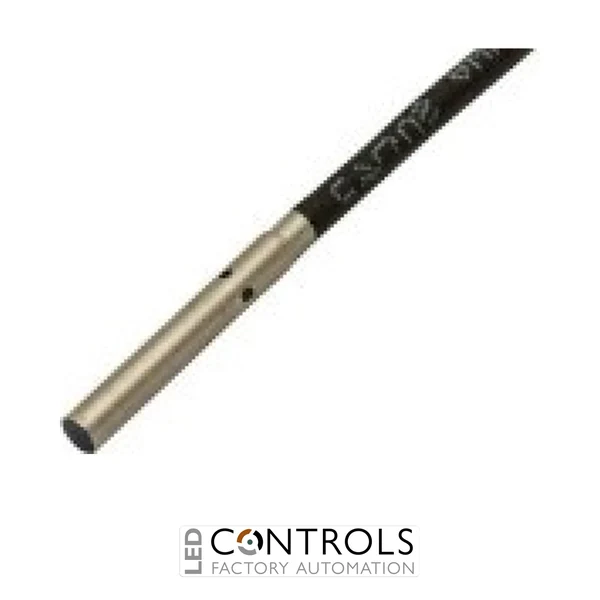

Why Choose the IMO AA1/AP-3A Inductive Proximity Switch?
The IMO AA1/AP-3A is an ultra-miniature 3 mm diameter shielded inductive proximity sensor designed for reliable non-contact detection of metallic objects in compact industrial automation applications. It combines a 1 mm nominal sensing distance, PNP normally-open output and fixed 2 m PUR cable in a compact stainless steel housing.
Operating from 10–30 V DC, the AA1/AP-3A can switch loads up to 100 mA and provides a high switching frequency of up to 3.5 kHz. A yellow LED provides immediate visual indication of the output state, helping simplify machine commissioning, alignment and fault diagnosis.
The sensor's AISI 303 stainless steel housing, shielded flush-mounting design and IP67 protection make it suitable for demanding machinery and automation environments where installation space is limited. Integrated short-circuit, reverse-polarity, impulsive-overvoltage and inductive-load protection further support dependable operation in industrial control systems.
Key Advantages
- Ultra-compact 3 mm diameter sensor for space-constrained machinery.
- 1 mm nominal sensing distance for precise metallic object detection.
- PNP normally-open transistor output for common DC automation systems.
- High switching frequency of up to 3.5 kHz supports fast-moving applications.
- Rugged AISI 303 stainless steel housing with IP67 protection.
- Fixed 2 m PUR cable provides a robust connection for industrial installations.
Key Features
- IMO AA Series miniature inductive proximity sensor.
- Ø3 mm cylindrical sensor body.
- Shielded / flush-mount configuration.
- PNP normally-open (NO) output.
- 10–30 V DC operating voltage.
- 1 mm nominal sensing distance.
- Maximum load current of 100 mA.
- Switching frequency up to 3.5 kHz.
- Yellow LED output-state indication.
- 2 m PUR cable connection.
- IP67 environmental protection.
- Short-circuit and reverse-polarity protection.
The IMO AA1/AP-3A uses an electromagnetic sensing field to detect metallic targets without requiring physical contact. When a suitable metal target enters the sensor's detection zone, the PNP normally-open output switches, allowing the signal to be used by a PLC, controller or other compatible automation equipment for position, presence or movement detection.
With a body diameter of only 3 mm and length of approximately 22 mm, the AA1/AP-3A is particularly useful where conventional M8, M12 or larger proximity sensors cannot be accommodated. Its fast 3.5 kHz switching capability also makes it suitable for detecting rapidly moving machine components and workpieces.
Typical Applications
- Metallic component presence detection.
- Machine position and end-of-travel sensing.
- High-speed counting and object detection.
- Compact assembly and production machinery.
- Robotics and automated handling equipment.
- Industrial applications with restricted sensor mounting space.
