Why Choose the IMO AA1/CP-1A Inductive Proximity Switch?

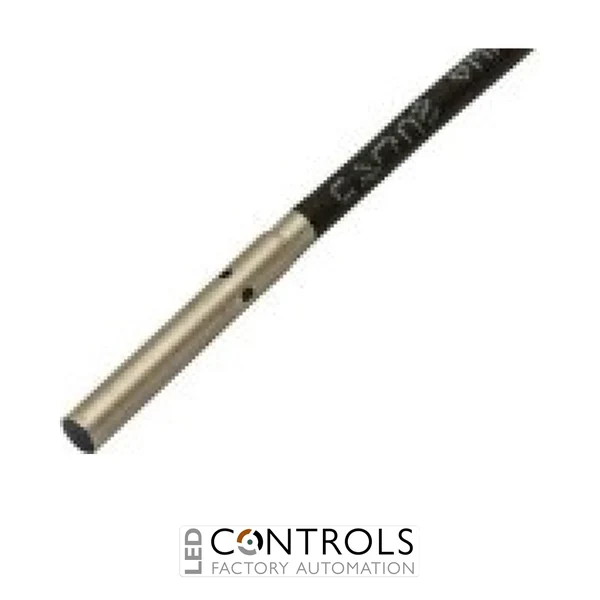

The IMO AA1/CP-1A is a super-miniature 3 mm diameter shielded inductive proximity switch designed for precise non-contact detection of metallic objects in compact industrial automation equipment. Part of the IMO Miniature Inductive AA Series, its exceptionally small cylindrical housing makes it particularly suitable for machinery where installation space is restricted.
The AA1/CP-1A provides a DC PNP normally closed (NC) output with a nominal sensing distance of 0.6 mm. Its shielded construction allows flush installation into surrounding metal, while a switching frequency of up to 3 kHz supports rapid detection of small moving components in high-speed automation applications.
Operating from a 10 to 30 V DC supply, the sensor features short-circuit, reverse-polarity and inductive-load protection together with a yellow LED output indicator. Its AISI 303 stainless steel housing, IP67 protection and integral 2 m PUR cable provide a robust pre-wired sensing solution for industrial machinery and precision automation systems.
Key Advantages
- Ultra-compact 3 mm diameter housing for space-restricted machinery.
- 0.6 mm nominal sensing distance for precise metallic target detection.
- PNP normally closed output for compatible DC automation systems.
- Shielded construction supports flush mounting in metal.
- Fast 3 kHz switching frequency supports high-speed detection applications.
- Non-contact inductive operation eliminates mechanical switch wear.
- IP67 protection and stainless steel construction support demanding industrial environments.
- Supplied with a durable 2 m PUR cable for straightforward installation.
Key Features
- IMO Miniature Inductive AA Series.
- Inductive proximity sensing technology.
- Ø3 mm cylindrical stainless steel housing.
- Shielded / flush-mountable design.
- 0.6 mm nominal sensing distance (Sn).
- PNP normally closed (NC) output.
- 10 to 30 V DC operating voltage.
- Maximum switching frequency of 3 kHz.
- Yellow LED output indication.
- Short-circuit protection with automatic reset.
- Reverse-polarity and inductive-load protection.
- IP67 degree of protection.
- Integral 2 m PUR cable.
The IMO AA1/CP-1A generates an electromagnetic sensing field at its active face. When a suitable metallic target enters this field, the sensor detects the resulting change and switches its PNP normally closed output. Because detection takes place without physical contact, the sensor avoids the mechanical wear associated with conventional limit switches and is well suited to repetitive machine cycles.
Its Ø3 mm body, 0.6 mm nominal sensing range and 3 kHz switching capability make the AA1/CP-1A particularly useful for detecting small or rapidly moving metal components. Combined with its stainless steel housing, IP67 protection, electrical protection functions and PUR cable, it provides a compact sensing solution for precision industrial automation.
Typical Applications
- Metallic component presence detection.
- Precision position sensing.
- High-speed component detection.
- Compact automated machinery.
- Small assembly and handling equipment.
- End-of-travel detection.
- Machine tooling and fixtures.
- Robotic automation equipment.
- Packaging and production machinery.
- OEM equipment with restricted sensor installation space.
